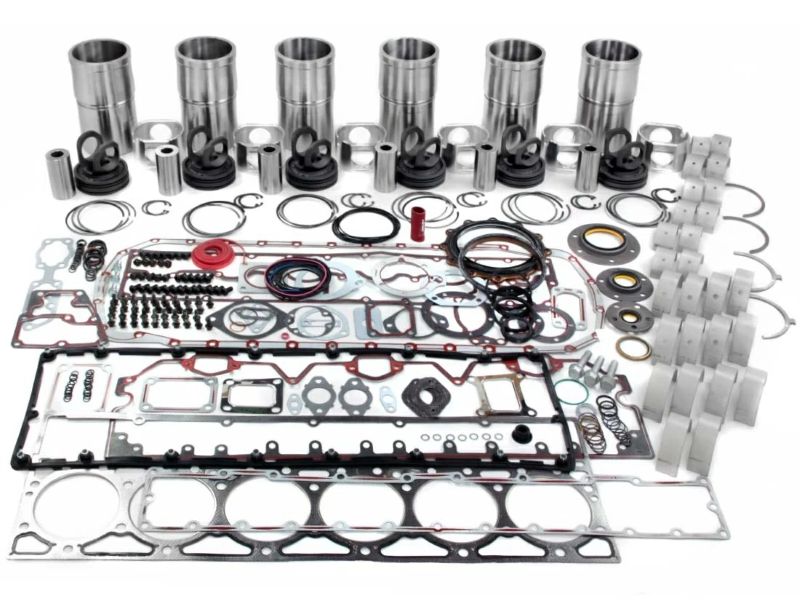

Cummins ISM / M11 Overhaul Kit — CPL-Matched Rebuild Kits for 1-Piece and 2-Piece Piston Engines

The Cummins ISM is a high-performance, mid-displacement diesel engine widely used in industrial, on-highway, and vocational applications. With a displacement of 10.8 liters and a reputation for durability and torque, this inline 6-cylinder engine evolved from earlier models like the M11 and L10, offering increased efficiency and lower emissions through electronic fuel control systems.Designed with a robust cast-iron block, wet liners, and advanced piston designs, the ISM is commonly found in buses, heavy-duty trucks, construction equipment, and stationary power units. When these engines reach high operating hours, a full rebuild can restore their original performance, improve fuel economy, and extend service life by thousands of hours.

Category Overview

Kit Type Selection: In-Frame vs. Complete vs. Top-End

ISM11 overhaul kits cover three rebuild scopes:

Top-End Kit

Replaces cylinder head components: valves, guides, seals, head gasket set. Indicated when compression loss is isolated to the head with no liner or bearing wear confirmed by measurement.

In-Frame Kit

Engine remains in the chassis. Replaces pistons, rings, liners, connecting rod bearings, and gaskets. Applicable when wear is confined to the upper end and main bearing clearance remains within Cummins specification (≤ 0.006 in / 0.152 mm). If compression test shows low cylinder pressure but oil pressure holds at rated speed, an in-frame rebuild is typically sufficient.

Complete Overhaul Kit

The engine fully disassembled. Adds main bearings, thrust washers, and camshaft bearings to the in-frame scope. Required when main bearing clearance exceeds tolerance, crankshaft journal shows taper or out-of-round beyond 0.001 in (0.025 mm), or sustained low oil pressure is confirmed. Attempting an in-frame rebuild on a worn crankshaft will not restore oil pressure.

If main bearing clearance has not been measured, sustained low oil pressure at rated speed (below 30 psi) is the field indicator that a complete overhaul is required rather than in-frame.

Kit Configuration by Piston Type

The ISM and M11 engine family uses two distinct piston designs, each requiring a different overhaul kit. The correct kit is determined by CPL number — not compression ratio alone, as the 17.0:1 ratio appears in both configurations.

1-Piece Piston Kit: Forged aluminum one-piece piston. Compression ratio range 16.3:1 – 17.0:1. Compatible with ISM, M11, and L10 engines. Typical applications: transit buses, cement mixers, agricultural machinery, standby power units, on-highway trucks.

2-Piece Piston Kit: Articulated forged steel crown + aluminum skirt. Compression ratio range 17.0:1 – 17.5:1. Compatible with ISM and M11 only (not L10). Typical applications: mining equipment, marine installations, oilfield machinery, heavy off-highway units operating under sustained load and temperature extremes.

Always verify kit selection against CPL number. Where compression ratio overlaps at 17.0:1, CPL is the only reliable selector.

Symptoms Indicating Overhaul Required

· Sustained increase in oil consumption (check oil every 100–200 hours)
· Blue or white exhaust smoke under load
· Loss of power or fuel economy decline
· Increased blowby at crankcase breather
· Low or uneven compression across cylinders
· Metallic particles found in oil analysis
· Liner scoring or piston slap noise at operating temperature

Which Rebuild Scope Do You Need

Note: For most ISM scheduled rebuilds, an in-frame kit is the standard choice. A complete overhaul kit is indicated when crankshaft inspection shows journal wear beyond service limits.

Recommended Overhaul Interval

· Power generation (prime / standby): 20,000–24,000 operating hours
· Marine continuous duty: 15,000–20,000 hours
· Mining / oilfield high-load: 12,000–15,000 hours

Interval should be confirmed by oil analysis and compression test results, not hours alone.

Compatibility Matrix

Confirm your CPL number from the engine nameplate before ordering. CPL number is located on the nameplate mounted to the engine block.

1-Piece Piston Kit — ISM / M11 / L10

52 CPL numbers. Includes ISM, M11, and L10 industrial and on-highway engines.

2-Piece Piston Kit — ISM / M11 Only

29 CPL numbers. ISM and M11 only — this kit is not compatible with L10 engines.
If your CPL number does not appear in either list, submit your ESN and nameplate photo for verification before ordering.

Kit Contents

Overhaul Kit Contents Comparison

Kit contents vary by rebuild scope. The table below lists components included in each configuration.

Standard and oversize piston/ring options available. Specify at time of order.

Recommended Co-Replacement Parts

The following components are not included in overhaul kits but should be replaced at the same time to prevent repeat disassembly and ensure rebuild integrity.

Quality Tier

Three supply tiers are available depending on application requirements and budget.

Genuine OEM (Cummins): Factory-original components with full Cummins part number traceability. Recommended for engines under active Cummins warranty or operating in critical applications where original tolerances must be maintained.
OEM-Equivalent: Manufactured to Cummins engineering specifications by authorized Cummins supply chain partners. Dimensional and material tolerances match OEM specifications. Suitable for the majority of commercial rebuild applications. All kits stocked by ZEB Power are OEM-equivalent unless otherwise specified.
Aftermarket: Third-party production. Pricing advantage for non-critical or short-cycle applications. Performance and longevity varies by manufacturer. Available on request — specify at time of inquiry.

CPL Identification Guide

CPL (Control Parts List) number is the primary fitment identifier for Cummins ISM overhaul kits. It determines piston configuration, compression ratio, liner specification, and ring set selection. Do not order based on engine model designation alone.

How to locate your CPL number:

· Step 1: Locate the engine nameplate — mounted on the right side of the engine block near the front
· Step 2: Find the field labeled "CPL" — a 4-digit number
· Step 3: Cross-reference against the compatibility matrix above
· Step 4: If CPL falls in the 17.0:1 overlap zone, confirm piston type by referencing Cummins QuickServe Online (quickserve.cummins.com) using your ESN

If the nameplate is missing or illegible: Provide your ESN (Engine Serial Number) — a 8-character alphanumeric code stamped directly into the block — and ZEB Power will verify the CPL and confirm kit selection before any order is placed.

Procurement & Logistics

Lead Time & Stock

· Genuine Cummins kits: subject to regional distributor availability; typical lead time 7–21 business days depending on CPL
· OEM-Equivalent kits: stocked for high-frequency CPL groups (16.3:1 variants); confirm availability at inquiry
· Special variant kits: lead time confirmed at order; typically 10–15 business days

Minimum Order

· Single kit orders accepted
· Volume pricing available for 3 units and above
· Fleet overhaul programs (10+ units) handled on a project basis — contact for dedicated lead time and pricing

Packaging

· Export wooden crate
· Individual components bagged and labeled
· Rust inhibitor applied to bare metal surfaces
· Gross weight approximately 99 kg per in-frame kit

Export Documentation

· Commercial invoice
· Packing list
· Certificate of Origin (on request)
· Any additional documentation required by destination customs confirmed at order

Shipping

· Sea freight (FCL / LCL): available to all major ports
· Air freight: available for urgent single-kit orders
· DDP / DAP terms available on request
· Transit damage: all shipments photographed pre-dispatch; damage claims supported with pre-shipment evidence

Warranty & After-Sales

Warranty Coverage by Tier

· Genuine Cummins kits: warranty terms follow Cummins standard policy; coverage period and conditions determined by regional Cummins distributor at point of sale
· OEM-Equivalent kits: 12 months from date of installation or 14 months from date of shipment, whichever occurs first; covers manufacturing defects in materials and workmanship
· Aftermarket kits: 6 months from date of shipment; dimensional conformance to Cummins service manual specifications is buyer's responsibility to verify prior to installation

Warranty Exclusions

· Damage resulting from incorrect kit selection (wrong CPL group)
· Installation without following Cummins ISM service manual torque specifications and procedures
· Engine overspeed, fuel contamination, or lubrication system failure
· Components modified or machined after delivery

Claim Process

· Step 1: Document the issue — photograph failed components, record engine hours at failure and CPL number
· Step 2: Submit claim within warranty period — provide photos, CPL, ESN, and order reference
· Step 3: Assessment within 5 business days — replacement or credit issued upon confirmation of manufacturing defect

Technical Support

· CPL and kit selection confirmation prior to order
· Cummins service manual torque specifications and assembly sequence available on request
· Installation query support via email — response within 1 business day

FAQ

Q1: How do I know whether my ISM requires a 1-piece or 2-piece piston kit?

Locate the CPL number on your engine dataplate and cross-reference the compatibility matrix on this page. CPL is the definitive selector — piston type and compression ratio alone are not sufficient for confirmation.

Q2: Is the 2-piece piston kit compatible with L10 engines?

No. The 2-piece articulated piston kit is designed for ISM and M11 engines only. L10 engines use the 1-piece piston kit — confirm by CPL before ordering.

Q3: My CPL number is not listed in either matrix — what should I do?

Submit your ESN and a photo of the engine nameplate. ZEB Power will verify the correct kit before any order is placed.

Q4: Can I use this kit for an on-highway truck engine, or is it industrial only?

Both on-highway and industrial applications are covered. The 1-piece piston kit CPL list includes transit, vocational, and on-highway engine configurations alongside industrial units.

Q5: Are standard and oversize pistons both available?

Yes. Standard bore and oversize piston and ring combinations are available. Specify cylinder bore measurement at time of inquiry.

Q6: Do I need to replace piston cooling nozzles as part of the rebuild?

Yes. One nozzle per cylinder (six total) should be replaced during every major rebuild. These nozzles spray oil onto the piston underside for temperature regulation — worn or blocked nozzles accelerate piston crown damage, particularly in 2-piece piston engines.

Q7: Are ISM overhaul kit components interchangeable with QSM11 kits?

No. ISM and QSM11 share some accessories (piston cooling nozzles are compatible across both families) but overhaul kit components — pistons, liners, rings, and bearings — are not interchangeable. Always order by CPL.

Inquiry

To receive pricing and availability for ISM overhaul kit, provide the following in your inquiry:

· Engine nameplate and CPL number
· Rebuild scope: Top-End / In-Frame / Complete
· Required quality tier: Genuine / OEM-Equivalent / Aftermarket
· Destination port and required documentation

Not Sure Which Kit You Need?

Send us your engine serial number and nameplate photo. We will identify the correct CPL, confirm the applicable kit variant, and provide a component-level breakdown before you commit to an order.
