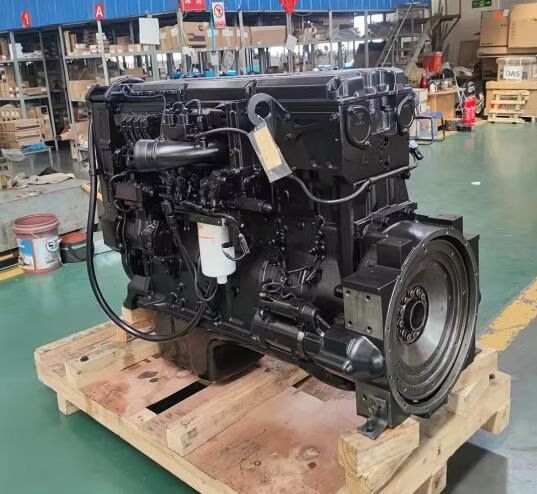

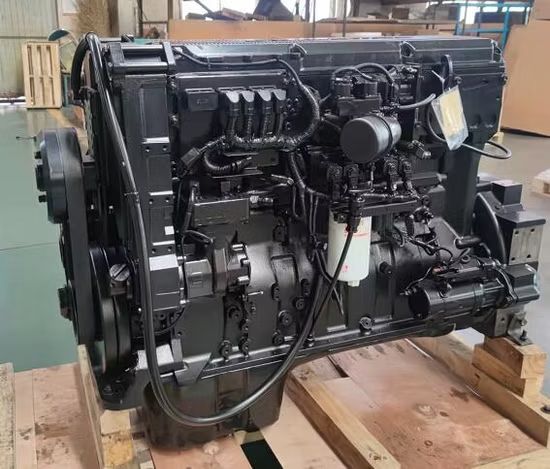

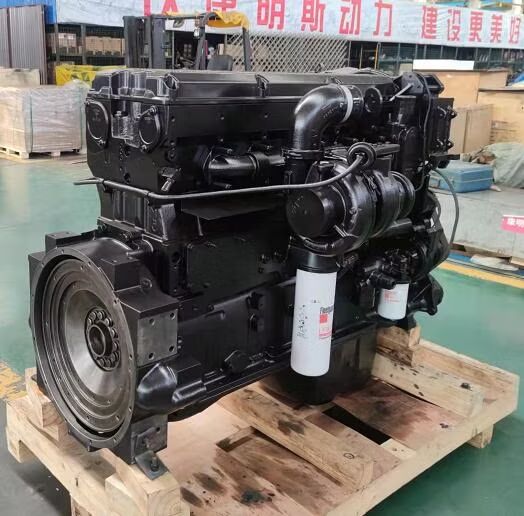

Cummins QSM11-C290 290HP Industrial Diesel Engine

The Cummins QSM11-C290 is a 10.8L inline 6-cylinder electronically controlled diesel engine rated at 216 kW / 290 HP at 2,100 RPM. With peak torque reaching approximately 1,478 N·m at 1,400 RPM, it is designed for excavators, large wheel loaders, drilling rigs, cranes, articulated dump trucks and mining equipment operating under sustained hydraulic and traction loads.

The QSM11-C290 is produced through the Xi’an Cummins Engine Company platform and is commonly selected for complete engine replacement, machinery overhaul, equipment repower, industrial power packs and project stock. Because QSM11 engines may use different CPLs, ECM calibrations, wiring harnesses, flywheel housings and accessory layouts, the model name and rated power alone are not sufficient for replacement confirmation.

Before quotation, ZEB Power checks the engine nameplate, ESN, CPL, configuration number, machine model, installation interface and required accessories. This helps reduce the risk of receiving an engine that has the correct nominal power but cannot be installed, connected or calibrated correctly.

• 10.8L inline 6-cylinder heavy-duty diesel engine
• 216 kW / 290 HP rated output at 2,100 RPM
• Peak torque approximately 1,478 N·m at 1,400 RPM
• Turbocharged and air-to-air intercooled configuration
• Full electronic engine control through ECM
• 12V or 24V starting configurations, subject to order confirmation
• CPL reference 8608
• Configuration reference D353020CX03
• Curve and datasheet reference FR20043

Need to confirm whether the QSM11-C290 matches your machine? Send us the engine nameplate, ESN, CPL and equipment model for configuration checking.

Confirm the Correct QSM11-C290 Before Ordering

QSM11 and earlier M11-based engines are available in multiple power ratings, emissions configurations and electronic calibrations. Two engines carrying similar model descriptions may still use different injectors, ECM software, wiring connectors, flywheel housings, cooling connections and auxiliary-drive arrangements.

A verified replacement quotation should be based on the original engine data rather than the machine model or horsepower alone.

Typical QSM11-C290 Applications

The QSM11-C290 is intended for large construction and mining equipment where hydraulic demand, vehicle weight and changing operating loads require stable electronic control and strong torque below rated speed.

Reference equipment mentioned in the supplied product information includes selected Hyundai, XCMG, Liugong, Lovol, Terex and Atlas Copco platforms. Final compatibility must still be checked by engine nameplate, ESN, CPL and installation configuration.

Cummins QSM11-C290 Technical Specifications

General Engine Data

Power and Torque Data

The original material also contained a 983 N·m torque figure in the model-comparison section. However, the stated 1090 lb·ft value converts to approximately 1,478 N·m. The final torque curve should therefore be verified against CPL 8608 and datasheet FR20043 before purchase.

Fuel, Air and Electronic Systems

Dimensions and Shipping Data

Technical data, engine weight, electronic configuration, starting voltage and supplied accessories may vary according to CPL, production batch and application. Final specifications should be confirmed in the quotation and pre-shipment documentation.

Why the QSM11-C290 Torque Curve Matters

The QSM11-C290 develops its strongest torque below the rated speed. This allows excavators, loaders and drilling machines to respond to increasing hydraulic resistance without requiring the engine to remain continuously at maximum RPM.

For mobile mining and construction equipment, low-speed torque affects digging response, loaded climbing, hydraulic recovery and the ability to maintain output when operating conditions change. This is why the torque curve and ECM calibration must be matched to the actual machine duty cycle rather than selecting an engine solely by horsepower.

QSM11-C290 Replacement Compatibility

The QSM11-C290 may be considered for selected machines currently using compatible QSM11 or earlier M11-based platforms. It should not, however, be described as a universal direct replacement.

For a replacement or repower project, provide clear photos of the engine nameplate, existing engine, wiring connectors, flywheel housing and installation area.

QSM11-C Series Model Comparison

The QSM11-C family uses the same general 10.8L architecture across multiple output levels. Power rating, torque curve, rated speed, ECM calibration and emissions equipment may differ significantly between variants.

The figures above are comparison references from the supplied content. The correct replacement model must be confirmed by ESN, CPL, original engine curve and equipment approval rather than the model suffix alone.

Parts and Service Support

ZEB Power can supply Cummins QSM11 and M11 engine parts together with the complete engine or separately for maintenance, repair and overhaul projects.

Commonly requested QSM11-C290 parts include:

• Fuel injectors and electronic fuel-system components
• ECM, sensors and wiring-harness components
• Turbocharger assembly
• Cylinder head assembly
• Piston, liner and piston-ring kits
• Main and connecting-rod bearings
• Water pump and cooling-system components
• Gasket and seal kits
• In-frame and complete overhaul kits
• Oil, fuel and air filters

Parts should be matched by ESN, CPL and part number. Using a QSM11 part from a different CPL or ECM calibration may result in incorrect fitment or engine performance.

Procurement, Packaging and Shipping

For overseas buyers, the main procurement risks are unclear engine configuration, unconfirmed stock, missing accessories, inadequate packaging and delayed export documents. The final quotation should clearly state the engine condition, configuration, accessory scope, lead time and shipping basis.

Warranty and After-Sales Support

The QSM11-C290 can be supplied with warranty according to the confirmed order terms. Warranty normally applies to manufacturing defects under correct installation, proper maintenance, suitable fuel quality and operation within the approved duty cycle.

• Warranty period: 12 months or 1,500 operating hours, whichever comes first
• Claim information: ESN, CPL, operating hours, fault description, ECM codes, photos and videos
• Technical support: configuration checking, installation guidance, diagnostics and parts identification
• Typical exclusions: incorrect installation, contaminated fuel, overheating, overload, unauthorized modification and inadequate maintenance

Frequently Asked Questions

What is the correct peak torque of the QSM11-C290?

The supplied content contained both 983 N·m and 1,478 N·m figures. It also listed 1090 lb·ft, which converts to approximately 1,478 N·m. For this reason, 1,478 N·m at 1,400 RPM is used as the working reference, but the final value must be confirmed against CPL 8608 and curve FR20043.

What is the difference between QSM11-C290 and QSM11-C290-II?

The two variants may have similar rated power but different emissions configuration, ECM calibration, torque curve and approved application. The “-II” suffix should not be treated as a simple upgrade or interchangeable replacement without checking the original ESN and CPL.

Does the QSM11-C290 use common rail injection?

The supplied source described both Celect electronic control and common-rail injection. These terms should not be treated as automatically equivalent. The exact fuel-system version should be confirmed through the engine ESN, CPL and final datasheet before ordering parts or a replacement engine.

Can the QSM11-C290 replace an older M11 engine?

It may be suitable for selected repower projects, but electronic controls, wiring, throttle input, mounting, cooling, flywheel housing and transmission interface must be reviewed. It is not a universal direct replacement.

Which equipment models use this engine?

The supplied product information references selected large excavators, wheel loaders, cranes, drilling rigs, articulated dump trucks and underground mining machines. Equipment model references should be treated as application examples rather than guaranteed direct-fit confirmation.

Can QSM11 spare parts be purchased separately?

Yes. Engine parts including injectors, ECM components, turbochargers, overhaul kits, cylinder-head parts, filters and cooling components can be quoted after ESN and CPL verification.

What information is required for a quotation?

Provide the engine nameplate, ESN, CPL, machine brand and model, required quantity, starting voltage, required accessories, destination country and preferred trade terms.

Contact and Inquiry

To receive an accurate quotation for the Cummins QSM11-C290, send the original engine and equipment information before placing the order.

For faster configuration checking, please provide:

• Clear photo of the original engine nameplate
• Engine serial number and CPL
• Machine brand, model and production year
• Current engine model and rated power
• Starting voltage: 12V or 24V
• Flywheel housing or hydraulic-pump interface requirements
• Required accessories and package scope
• Required quantity
• Destination country and port
• Required delivery schedule

Response is normally available within 24 business hours after the required information is received. Contact us for QSM11-C290 pricing, stock and replacement verification.
