Perkins 4016-61TRG3A 4000 Series Diesel Engine 2000kW

Perkins 4016-61TRG3A Diesel Engine for Generator, Mining and Industrial Power Applications

The Perkins 4016-61TRG3A diesel engine is a high-power model from the Perkins 4000 Series, designed for generator sets, mining sites, data centers, oilfield operations, marine power and heavy-duty industrial equipment. With a 16-cylinder V-type configuration, 61.123 L displacement and 2000 kW / 2680 HP output at 1500 rpm, it is built for applications that require stable power, long service life and reliable continuous operation.

For international buyers, choosing the correct Perkins 4016-61TRG3A engine is not only about rated power. Engine configuration, emission compliance, generator set matching, parts availability, shipping method and after-sales support should all be checked before purchase.

Key Advantages of Perkins 4016-61TRG3A

• Perkins 4000 Series diesel engine with high power density and fuel-efficient operation.
• Suitable for power generators, mining sites, data centers, oilfield operations, marine applications and industrial power units.
• Meets Stage IIIA / Tier 3 emission standards, with SCR upgrade option for stricter emission regions.
• Designed with a 30,000-hour overhaul interval for long-term reliability under heavy-duty operation.
• Proven in power and mining applications in Ghana, South Africa and Tanzania.

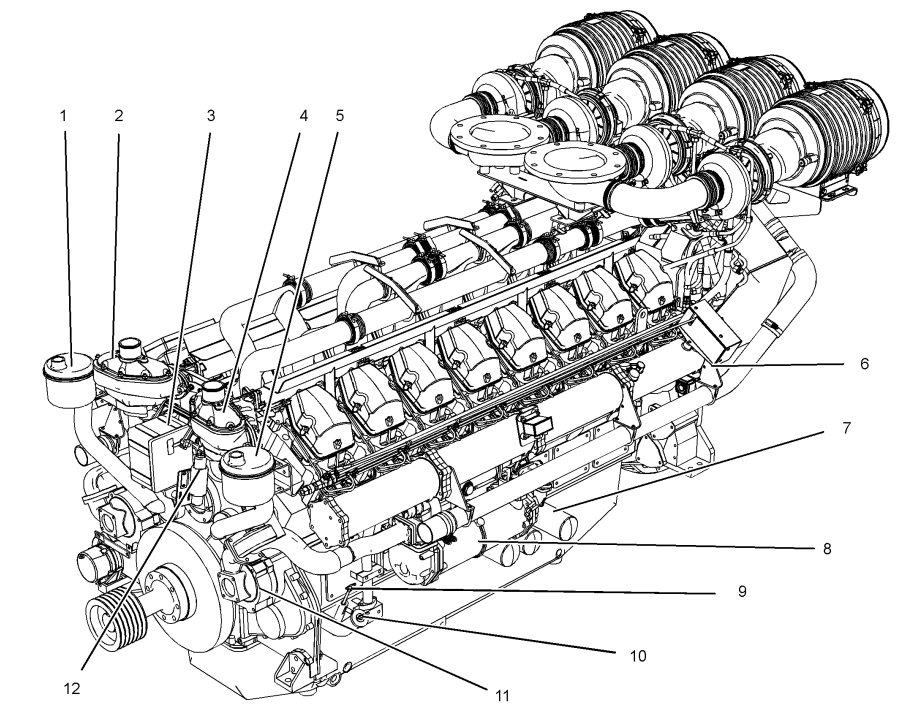

Core Technical Features and Engine Design

The Perkins 4016-61TRG3A is a 16-cylinder V-type power unit with 61 L class displacement. It meets EU Stage IIIA and US Tier 3 standards, making it suitable for generator set and industrial power applications in many markets. Its turbocharged and aftercooled design delivers 2000 kW / 2680 HP at 1500 rpm, with torque output of more than 9500 N.m.

The common rail fuel injection system operates at up to 1800 bar and works together with the electronic control module to improve fuel efficiency. The engine structure uses compacted graphite iron and finite element analysis optimization, supporting a long 30,000-hour overhaul interval. A dual-circuit cooling system supports reliable operation from -32°C to 50°C, making the engine suitable for demanding climates and remote job sites.

Perkins 4016-61TRG3A Engine Parameters

Typical Application Scenarios

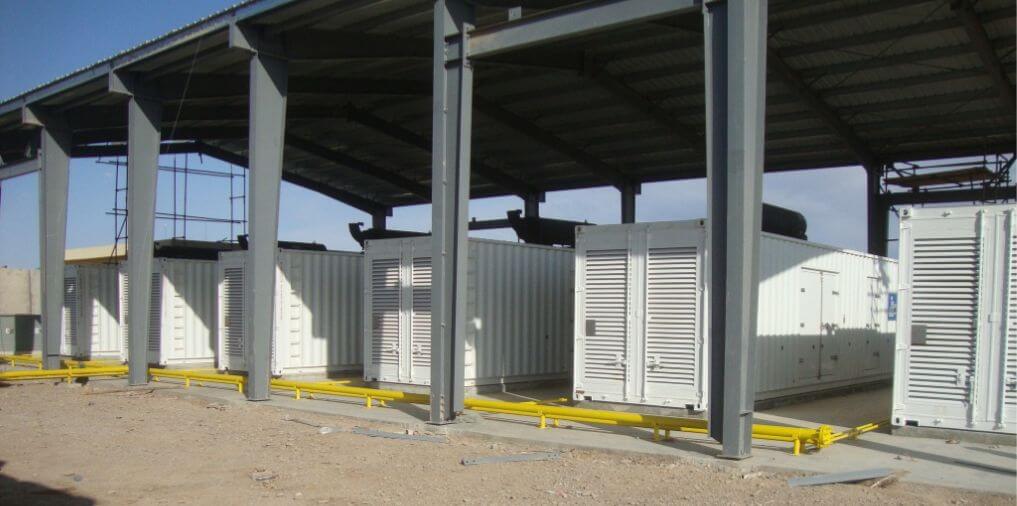

The Perkins 4016-61TRG3A engine is commonly selected for applications where high power output, long operating hours and stable load response are required. It is especially suitable for generator sets and industrial power projects in mining, data centers, oilfields and remote infrastructure.

In a Ghana data center application, a Perkins diesel generator powered by the 4016-61TRG3A achieved 72-hour continuous runtime at 85% load, with 198 g/kWh fuel rate and less than ±0.5% voltage fluctuation. In mining equipment such as the Liebherr R9800 excavator, the engine maintains power with only 7% derate at 3000 m altitude. With an optional SCR kit, the unit can be upgraded for Stage IV emission requirements in stricter regions.

Model Confirmation, Parts Matching and Technical Support

For Perkins 4016-61TRG3A engine sourcing, model confirmation is a critical step before order confirmation. Buyers should provide the engine model, engine serial number, required quantity, application type and destination port so that the correct engine configuration, parts and export plan can be checked.

We support Perkins diesel engine 4000 Series supply, including 4016, 4012 and 4008 engines. Parts support is also available for Perkins generator service items, including filters, injectors, ECM modules and piston kits. For parts or replacement projects, quotation should be based on engine serial number and part number to reduce mismatch risk.

Maintenance and Operation Guidelines

• Fuel system: Replace the fine filter every 500 hours to maintain fuel quality.
• Lubrication: Change oil every 500 hours or annually using 15W-40 CJ-4 oil, and maintain oil pressure between 3.5–5.5 bar.
• Air system: Use dual-stage air filters and inspect the pre-filter daily in dusty environments.
• Cooling: Use 50% glycol coolant and maintain pH between 8.5–10.5.
• Diagnostics: Diagmaster software monitors 128 real-time data points, and injector calibration is recommended if deviation exceeds 5%.
• Overhaul: Crankshaft end play should remain between 0.10–0.30 mm to help prevent bearing wear.

Stock Supply and Availability

We maintain over 500 m² of warehouse space in China, with supply support for Perkins diesel engine 4000 Series models, including 4016, 4012 and 4008 engines. Common inventory coverage includes Perkins 4016-61TRG3A, Perkins 4012TWG2 and generator service parts such as filters, injectors, ECM modules and piston kits.

With synchronized supply from long-term distributor channels, most confirmed orders can be arranged for shipment within 7 days when stock is available. Supply support is available for Perkins generators and industrial engine users in Ghana, South Africa, Tanzania and other Africa and Southeast Asia markets.

Packaging and Shipping

Each engine is inspected for appearance condition and serial number before shipment. Engines are packed in reinforced steel-framed wooden boxes with moisture-proof protection and orientation labels. Key components such as ECM and fuel injectors are packed in independent shock-proof containers and supplied with export documentation where required.

Shipping terms such as CIF, FOB and DDP can be arranged according to customer requirements. Customers in Africa and Southeast Asia commonly choose LCL or FCL sea freight, with an average sea delivery cycle of 18–25 days depending on route, destination port and shipping schedule.

FAQ About Perkins 4016-61TRG3A Engine

What applications is the Perkins 4016-61TRG3A engine suitable for?

The Perkins 4016-61TRG3A is suitable for generator sets, data centers, mining sites, oilfield operations, marine power and industrial power systems that require high power output and long-hour operation.

Can this engine be used for a 2000 kVA standby generator set?

Yes. The Perkins 4016-61TRG3A is suitable for 2000 kVA standby power systems. Final generator set matching should be confirmed based on alternator selection, load profile, emission requirements and site conditions.

What information is needed before ordering the engine or parts?

Please provide the engine model, engine serial number, required quantity, application type, destination country and port. For spare parts, provide the part number and engine serial number to improve parts matching accuracy.

Can you provide flexible purchasing options if the project budget is limited?

Yes. Depending on the project requirement, flexible sourcing options can be discussed, including genuine, OEM-quality and remanufactured parts, helping buyers balance budget, reliability and delivery time.

How do you reduce the risk of wrong engine or parts supply?

Quotations are checked based on engine serial number and part number. Before shipment, actual product photos and serial number information can be provided for buyer confirmation.

How is the engine packed for export shipment?

The engine is packed in reinforced steel-framed wooden boxes with moisture-proof protection and orientation labels. Key components such as ECM and fuel injectors are packed separately in shock-proof packaging.

Can you support long-term stock and stable supply?

With long-term distributor supply channels and warehouse support in China, we can support repeat orders for Perkins 4000 Series engines and common service parts. Current availability and pricing should be confirmed before each order.

Contact and Inquiry

To request a quote for the Perkins 4016-61TRG3A diesel engine or related Perkins generator parts, please provide the engine model, required quantity, application, destination country, discharge port and any serial number or part number information available.

Our team can help confirm engine availability, model matching, parts compatibility, packing method, export documents and shipping schedule before order confirmation.
