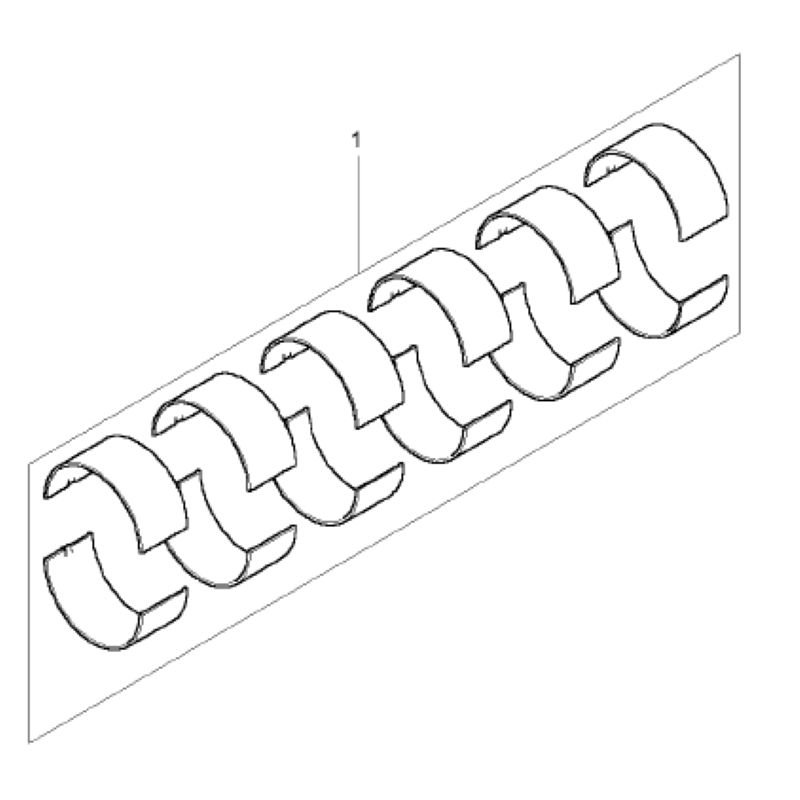

Genuine Perkins KRP3023 Big End Bearing Kit for 2206 Series

The big end bearing kit (also referred to as the conrod bearing kit) provides the bearing shells between the connecting rod big end and the crankshaft crankpin journal, forming the primary load-bearing interface in the reciprocating assembly. Worn or failed big end bearings typically present as audible knocking under load, falling oil pressure, or visible metal contamination in the oil. KRP3023 is the standard (STD) size kit for the Perkins 2206 series variants listed below.

List of compatible engine models

The KRP3023 is a standard-size connecting rod bearing. ZEB Power also offers two optional sizes:
KRP3023/051 — (-)0.51 mm undersize (for reground crankshaft)
KRP3023/076 — (-)0.76 mm undersize (for reground crankshaft)
If your crankshaft has been reground, measure the crankpin journal diameter before ordering. Contact us with your measurement and ESN to confirm the correct undersize variant.

More Big End Bearing Kit in stock as below

ZEB Power offers connecting rod bearings for the Perkins 403, 404, 1103, 1104, 1106, 1204, 1306, 1506, 1706, 2206, 2506, 2806, 4006, 4008, 4012, and 4016 series, among others.
If you cannot find the connecting rod bearing you need in the list, please send us the engine nameplate or part number, and we will verify it for you.

Procurement and Logistics

Genuine Perkins OEM parts supplied in partnership with an authorized Perkins first-tier distributor. Stock is sourced from Perkins warehouses in China, Singapore, and the United Kingdom, enabling competitive lead times across Africa, the South Amercia, Southeast Asia, and CIS markets. Original purchase invoices and certificates of authenticity available upon request.

Sourcing

· Genuine Perkins OEM · First-Tier Distributor Partner
· Warehouse locations: China · Singapore · United Kingdom

Lead Time

· Standard: 7–10 days from order confirmation
· Urgent orders: 3–5 days subject to warehouse stock availability
· Large volume orders: contact us to discuss dedicated stock arrangement

Trade Terms

· FOB · CIF · DDP · EXW
· Payment: T/T · L/C
· MOQ: 1 unit

Export Documentation

· Commercial Invoice · Packing List · Certificate of Origin
· Additional documentation requirements: notify us at time of inquiry

Warranty and After-Sales Service

Coverage

All parts carry a 12-month warranty from the date of shipment, covering manufacturing defects in materials and workmanship. Incorrect shipments (wrong part number or specification against confirmed order) are covered in full — replacement arranged at no additional cost with return freight covered by ZEB Power.

Exclusions

Warranty does not cover:
· Normal wear and tear under operating conditions
· Damage resulting from incorrect size selection or incompatible engine configuration
· Improper installation, including failure to observe Perkins specified torque values
· Use of non-recommended lubricants or contaminated oil
· Operation outside rated parameters

Claim Process

Contact us with ESN, Build List, installation date, and a description of the issue. Photo documentation of the failed part is required. Approved claims are fulfilled by replacement; return freight is covered by ZEB Power. Replacement is dispatched upon claim approval — typically within 5 working days of assessment.

Transit Damage Protocol

Inspect packaging upon receipt. If external packaging appears intact but internal damage is found upon unpacking, photograph both the packaging and the damaged part immediately and contact us within 48 hours of delivery (including weekends and public holidays). Cases of concealed transit damage are handled on a case-by-case basis — partial compensation or subsidized replacement will be arranged subject to photo evidence and carrier assessment.

FAQ

1. Will KRP3023 fit my 2206C-E13TAG2 or 2206D-E13TAG2?

Yes. The A/C/D emissions tier suffix does not affect big end bearing specification within the 2206 TAG2 series. Confirm your Build List is listed in the compatibility table above before ordering.

2. How do I know if I need STD size or an undersize variant?

Measure the crankpin journal diameter before ordering. If the crankshaft is standard and unground, KRP3023 (STD) applies. If the crankshaft has been reground, measure the journal and contact us with the measurement to confirm KRP3023/051 or KRP3023/076.

3. How many bearing shells are included in one kit?

KRP3023 contains 6 pairs (12 shells total), covering all six cylinders of the 2206 series engine.

4. Is this a genuine Perkins OEM part or an aftermarket replacement?

This is a genuine Perkins OEM part supplied through an authorized first-tier distributor. No aftermarket substitutes are supplied under this listing.

5. What are the symptoms of worn big end bearings?

Common indicators include rhythmic knocking under load, reduced oil pressure at operating temperature, and metallic particles visible in the oil at service. If any of these are present, inspect the crankpin journal surface before fitting new bearings.

6. What is the lead time?

Standard lead time is 7-10 days from order confirmation. Contact us for urgent requirements.

7. What export documents are provided?

Standard export documentation includes commercial invoice, packing list, and certificate of origin. Additional documents available upon request.

Contact For Inquiry

To receive a quote, provide the following:
ESN (Engine Serial Number) · Part Number S· Quantity required · Destination port and required documentation
Quote turnaround: within 24 hours.
Not sure of your Build List or crankpin condition? Send a photo of your engine nameplate and describe the symptoms — we will confirm the correct part and size for your engine.
