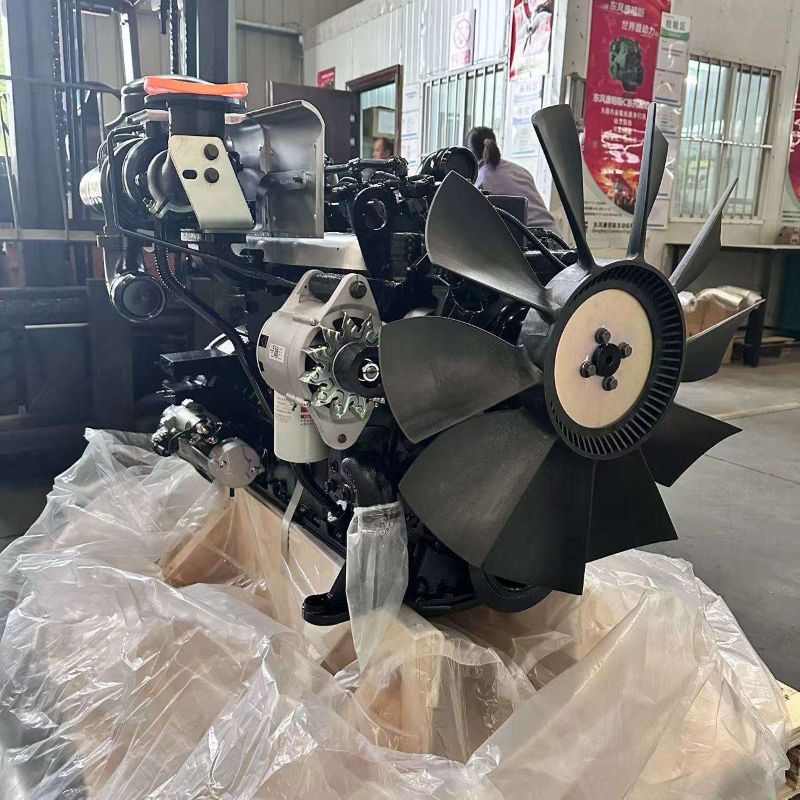

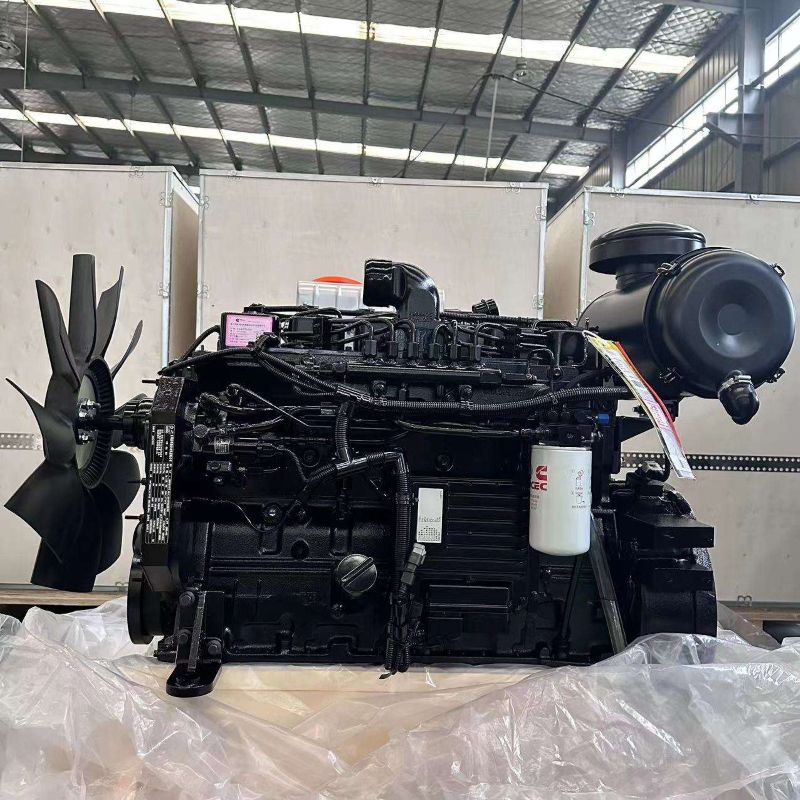

The Cummins QSB5.9-G2 is a 5.9L electronically controlled generator-drive diesel engine rated at 96 kW prime power and 106 kW standby power at 1,500 RPM.
Within the listed QSB5.9 generator-engine range, the G2 is the lowest-output configuration. It is therefore relevant to generator-set manufacturers and replacement-engine buyers who need the compact QSB5.9 platform but do not require the higher mechanical output of the G3, G30, G31 or G33.
The engine uses a high-pressure common-rail fuel system, electronic governing, turbocharging and air-to-air charge-air cooling. These systems allow more precise fuel and speed control, but they also make ECM calibration, wiring, sensors and fuel cleanliness important parts of the purchasing and replacement process.
- 5.9L inline-six, 4-stroke diesel engine
- Prime engine power: 96 kW at 1,500 RPM
- Standby engine power: 106 kW at 1,500 RPM
- Designed around a 50Hz generator-set configuration
- Electronic high-pressure common-rail fuel system
- Turbocharged with air-to-air charge-air cooling
- Electronic governor
- Reference CPL: 4813
- Reference net weight: approximately 453 kg
- EU Stage IIIA / China NS III emission reference
Replacing an existing generator engine? Send the original nameplate, ESN, CPL, genset rating, frequency, alternator model and controller information for configuration checking.
Why the QSB5.9-G2 Is More Than the Lowest-Power QSB5.9
The QSB5.9-G2 should not be selected simply because it has the lowest power rating in the family. Its value depends on whether its 96 kW prime output provides enough mechanical power for the required electrical load without paying for unused engine capacity.
| Project Requirement | How the QSB5.9-G2 Fits |
|---|---|
| Medium-small 50Hz genset project | The 96 kW prime rating is commonly evaluated for generator sets around the 110–115 kVA prime class, depending on alternator efficiency and derating. |
| Lower fuel and purchase demand than higher-output QSB5.9 models | The G2 may avoid selecting a G3 or G31 when the electrical load does not require the additional mechanical power. |
| Electronic speed and fuel control | The common-rail system and electronic governor support controlled fuel delivery and speed response during changing loads. |
| Compact engine package | The listed 5.9L platform and 453 kg net weight are relevant to packaged, silent and mobile generator-set designs. |
| Replacement of an existing QSB5.9-G2 | The model can be considered for replacement, but ESN, CPL, ECM, harness, flywheel housing and cooling must still be verified. |
96 kW and 106 kW Are Engine Outputs, Not Final Genset Ratings
The listed 96 kW prime and 106 kW standby values are mechanical outputs measured at the engine flywheel. They are not the same as the electrical kW or kVA delivered by the complete generator set.
Some mechanical power is consumed by the alternator, cooling fan and auxiliary systems. The final kVA value also depends on the generator-set power factor.
| Rating Point | Engine Mechanical Power | Estimated Electrical Class | Selection Note |
|---|---|---|---|
| Prime | 96 kW at 1,500 RPM | Approximately 110–115 kVA | Estimate based on typical alternator efficiency and 0.8 power factor; final rating requires alternator data. |
| Standby | 106 kW at 1,500 RPM | Approximately 120–125 kVA | Emergency standby class only; it should not be treated as the continuous operating output. |
For example, using a 93% alternator efficiency and 0.8 power factor:
- 96 kW × 0.93 ÷ 0.8 = approximately 111.6 kVA
- 106 kW × 0.93 ÷ 0.8 = approximately 123.2 kVA
These are preliminary engineering estimates. The final genset rating must account for the selected alternator, fan power, ambient temperature, altitude, enclosure airflow and required transient performance.
Prime, Standby and Continuous Are Not Interchangeable Terms
The original material described 96 kW prime power as “continuous operation”. That wording can create confusion because prime, standby and continuous ratings are separate duty definitions.
| Rating Term | General Meaning | Purchasing Implication |
|---|---|---|
| Prime Power | Used for generator sets operating for extended periods under a variable electrical load, subject to the applicable engine rating definition. | Use the 96 kW figure only within the approved QSB5.9-G2 prime-duty curve. |
| Standby Power | Used for emergency backup operation during a normal utility-power failure. | The 106 kW value is not intended to be the normal long-duration operating point. |
| Continuous Power | A separate rating for applications operating for long periods at a relatively constant load. | Do not assume the 96 kW prime rating is automatically an approved continuous rating. |
For applications such as remote base-load power, continuous industrial operation or isolated microgrids, request the applicable engine rating curve before confirming the generator-set output.
1,500 RPM Confirms the Referenced 50Hz Configuration
The supplied 96 kW and 106 kW performance data applies at 1,500 RPM. When connected to a four-pole alternator, 1,500 RPM corresponds to 50Hz electrical output.
| Frequency | Typical Four-Pole Speed | Required Engine Confirmation |
|---|---|---|
| 50Hz | 1,500 RPM | The listed 96 kW prime and 106 kW standby values apply to this referenced speed. |
| 60Hz | 1,800 RPM | A separate 1,800 RPM power curve, ECM calibration, cooling requirement and fuel-consumption reference must be confirmed. |
The ability of the engine family to operate at 1,800 RPM does not mean that the 1,500 RPM output figures remain unchanged. Always specify the destination frequency before ordering.
What the Common-Rail System Changes in a Generator Application
The QSB5.9-G2 uses an electronically controlled high-pressure common-rail fuel system. Fuel pressure is generated in the rail, while the ECM controls injection timing and quantity according to engine speed, load and sensor input.
| System Feature | Potential Genset Benefit | Service Requirement |
|---|---|---|
| Electronic fuel metering | Supports controlled fuel delivery as the electrical load changes. | The ECM calibration must match the engine rating and generator application. |
| High-pressure injection | Supports fuel atomisation and managed combustion across different load points. | Clean fuel, correct filtration and careful service procedures are essential. |
| Electronic governor | Supports engine-speed response during electrical load changes. | Final transient performance depends on the complete engine, alternator and controller setup. |
| Electronic diagnostics | Allows sensor faults and engine conditions to be monitored. | The controller, harness, communication interface and diagnostic tools must be compatible. |
The common-rail system does not by itself guarantee stable voltage or frequency. Voltage stability is mainly managed by the alternator and AVR, while frequency response also depends on ECM calibration, governor settings, rotating inertia and load-step size.
QSB5.9-G2 Technical Specifications
Core Engine Data
| Parameter | Reference Specification |
|---|---|
| Engine Model | QSB5.9-G2 |
| Manufacturer Reference | Dongfeng Cummins Engine Co., Ltd. / DCEC |
| Engine Type | 4-stroke, inline six-cylinder diesel engine |
| Displacement | 5.9 L |
| Bore × Stroke | 102 × 120 mm |
| Compression Ratio | 17.3:1 for the referenced configuration |
| Firing Order | 1-5-3-6-2-4 |
| CPL Reference | 4813 |
Performance and Control Data
| Parameter | Reference Specification |
|---|---|
| Prime Engine Power | 96 kW at 1,500 RPM |
| Standby Engine Power | 106 kW at 1,500 RPM |
| Referenced Frequency | 50Hz with a four-pole alternator |
| 60Hz Requirement | Separate 1,800 RPM rating and calibration must be confirmed |
| Fuel System | Electronically controlled high-pressure common rail |
| Governor Type | Electronic |
| Listed Governor Regulation | ≤3% reference |
| Idle Speed | Approximately 800 ± 100 RPM |
The listed ≤3% governor figure does not by itself confirm a particular ISO 8528 transient class. The complete genset must be tested to establish frequency dip, recovery time, voltage deviation and load acceptance.
Air, Cooling and Starting Data
| Parameter | Reference Specification |
|---|---|
| Aspiration | Turbocharged with air-to-air charge-air cooling |
| Cooling Method | Liquid cooled |
| Listed Cooling Reference | 29 kW; confirm whether this value represents coolant heat rejection or another operating reference in the final datasheet |
| Starting Method | Electric starter motor |
| Starting Voltage | 12V or 24V, subject to final configuration |
| Standard Starting Temperature | Approximately -10°C |
| Starting Temperature with Auxiliary Heating | Approximately -25°C, subject to the complete cold-start package |
Actual cold-start performance also depends on battery capacity, battery condition, oil viscosity, fuel quality, coolant temperature, intake heating and block-heater configuration.
Dimensions and Installation References
| Parameter | Reference Specification |
|---|---|
| Engine Dimensions | 1015 × 725 × 990 mm |
| Net Weight | Approximately 453 kg |
| Reference Packing Dimensions | 1315 × 1025 × 1290 mm |
| Reference Gross Weight | Approximately 510 kg, subject to accessories and final packing list |
| Centre of Gravity from Block Front | Approximately 401 mm |
| Centre of Gravity above Crankshaft | Approximately 141 mm |
Centre-of-gravity data should be considered when designing the skid, anti-vibration mounts and lifting arrangement. Final installation must follow approved engine and alternator drawings.
QSB5.9-G2 Compared with G3, G30, G31 and G33
The listed QSB5.9 variants share a general 5.9L generator-engine platform, but the power curve, ECM calibration, turbocharger, injectors, cooling demand and external equipment may differ.
| Model | Listed Prime Power | Listed Standby Power | Typical Selection Logic |
|---|---|---|---|
| QSB5.9-G2 | 96 kW | 106 kW | Entry-output option for projects that do not require the higher mechanical capacity of the other variants. |
| QSB5.9-G3 | 120 kW | 132 kW | Considered when the required genset output exceeds the practical G2 range. |
| QSB5.9-G30 | 116 kW | 128 kW | Requires confirmation of its specific ECM, fuel-system and emission configuration. |
| QSB5.9-G31 | 132 kW | 145 kW | Provides additional output but also requires a matched alternator and cooling system. |
| QSB5.9-G33 | 159 kW | 175 kW | Highest listed output; the complete generator package must be designed for the greater thermal and mechanical load. |
The terms Common Rail and electronically controlled HPCR describe related fuel-system concepts and should not be used alone to prove parts interchangeability or superior grid-parallel performance.
Parallel operation and synchronisation depend on the complete genset controller, governor calibration, AVR, load-sharing system, protection system and commissioning process.
When the G2 Is a Better Choice Than a Higher-Power Variant
| Project Situation | Why the G2 May Be Preferred |
|---|---|
| The required prime genset output is around 110 kVA | The G2 may provide sufficient mechanical power without purchasing unused capacity. |
| The alternator is already sized for the G2 output range | Selecting a higher-output engine may not increase usable electrical output if the alternator remains the limiting component. |
| The radiator and enclosure were designed for the lower heat load | A higher-output engine may require a larger radiator, greater airflow and different fan power. |
| The existing genset uses a confirmed QSB5.9-G2 configuration | Matching the original ESN, CPL and electronic configuration may reduce replacement and commissioning risk. |
| The site load rarely approaches the higher model’s capacity | A correctly sized engine can avoid unnecessary capital cost and excessive low-load operation. |
Same QSB5.9 Family Does Not Mean Direct Interchangeability
The physical similarity of QSB5.9 engines does not guarantee that a G2, G3, G30, G31 or G33 can be exchanged without modification.
| Replacement Item | Required Verification |
|---|---|
| Engine Serial Number | Use the ESN to identify the original build, calibration and compatible parts. |
| CPL 4813 | Confirm whether the existing engine uses the same control-parts configuration. |
| ECM Calibration | Match the power rating, rated speed, governor behaviour and generator application. |
| Engine Harness | Compare connector type, sensor layout, shutdown circuits and controller interface. |
| Starting Voltage | Confirm 12V or 24V before ordering the starter, charging alternator and harness. |
| Flywheel Housing | Confirm the actual SAE housing and flywheel specification from drawings or measurements. |
| Alternator Coupling | Verify the flexible coupling, disc arrangement, shaft interface and mounting dimensions. |
| Cooling System | Check radiator capacity, fan arrangement, coolant connections and charge-air cooler. |
| Intake and Exhaust | Confirm air-filter restriction, turbocharger orientation, outlet direction and allowable back pressure. |
| Controller Integration | Verify analogue inputs, CAN communication, alarms, shutdown logic and governor control. |
Control systems from Deep Sea, ComAp, SmartGen, Harsen and other manufacturers may be integrated into generator packages, but compatibility depends on the selected controller model, communication protocol and wiring design.
Applications Within the QSB5.9-G2 Output Range
| Application | Why the G2 May Be Considered | Important Project Check |
|---|---|---|
| Small and Medium Factory Backup | The output range can support selected production, lighting, pump and auxiliary loads. | Calculate the largest motor-starting current and required load-step performance. |
| Commercial Buildings | Suitable for selected medium-small emergency-power systems. | Review elevators, pumps, HVAC, fire systems and non-essential load shedding. |
| Telecom and Remote Sites | The compact engine package can support enclosed and containerised gensets. | Review low-load running, fuel autonomy, remote monitoring and maintenance access. |
| Construction Sites | Can support tools, pumps, lighting and temporary site facilities within the calculated load range. | Confirm mobile-emission requirements, dust protection and enclosure cooling. |
| Agricultural and Water-Pumping Projects | May drive generator systems serving irrigation pumps and remote agricultural loads. | Check motor starting, seasonal duty, ambient temperature and fuel storage. |
| Emergency and Community Power | The standby rating may support hospitals, shelters or public facilities within the final electrical design. | Confirm redundancy, response time, local certification and critical-load priority. |
Emission Reference Requires Destination-Market Verification
The supplied information lists EU Stage IIIA and China NS III as emission references for the QSB5.9-G2.
These references do not automatically confirm current approval in every destination market. Requirements may differ according to whether the genset is stationary, mobile, rental, emergency-only or used for prime power.
| Compliance Question | Required Check |
|---|---|
| Is Stage IIIA accepted locally? | Check the current regulation for the destination country and project type. |
| Is a certificate available? | Confirm the exact document, engine family, serial-number coverage and revision. |
| Is the genset mobile or stationary? | Different regulatory categories may apply. |
| Does the complete genset require certification? | The alternator, controller, enclosure, noise level and electrical system may require separate approval. |
Available Supply Formats
| Supply Format | Suitable For | Items to Confirm |
|---|---|---|
| Base Generator Engine | Genset OEMs with their own cooling, wiring, controller and base-frame design | Flywheel, housing, starter, charging alternator, ECM, harness and sensors |
| Complete Replacement Engine | Owners replacing an existing QSB5.9-G2 | ESN, CPL, calibration, accessory list and mechanical interfaces |
| Engine with Cooling Package | OEM projects requiring radiator and charge-air cooling support | Ambient-temperature rating, fan power, airflow and enclosure design |
| Generator Drive Package | Projects requiring a broader engine-side package | Required kVA, alternator model, voltage, frequency, controller and starting system |
| Project Spare Engine | Sites maintaining a standby engine for critical generator sets | Storage preservation, ECM compatibility, accessories and commissioning procedure |
QSB5.9-G2 Parts Support
ZEB Power can supply Cummins QSB5.9 engine parts for routine maintenance, fuel-system repair, cooling-system service and overhaul projects.
- Common-rail injectors
- High-pressure fuel-pump components
- Fuel rail and pressure-control components
- Oil, fuel and air filters
- Turbocharger and charge-air components
- Water pumps and thermostats
- Starter motors and charging alternators
- Electronic sensors and switches
- ECM and engine-harness components
- Gasket and seal kits
- Pistons, rings and bearings
- Cylinder-head and valve-train components
Parts should be selected by ESN, CPL and individual part number. CPL 4813 alone may not identify every accessory, sensor revision or electronic component fitted to a particular production engine.
Commercial, Packing and Warranty Information
| Commercial Item | Reference Information |
|---|---|
| Available Supply | Base engine, replacement engine, cooling package, generator-drive package or service parts |
| Lead Time | Normally 15–30 working days, depending on stock, engine configuration and included accessories |
| Payment Terms | T/T or L/C, subject to order confirmation |
| Trade Terms | FOB / CIF / CFR / EXW |
| Port of Loading | Shenzhen or another confirmed China port |
| Reference Packing Size | 1315 × 1025 × 1290 mm |
| Reference Gross Weight | Approximately 510 kg, subject to the final accessory and packing list |
| Packaging | Reinforced export wooden crate with moisture and transport protection |
| Warranty Reference | 1 year or 1,500 operating hours, whichever occurs first, subject to the final sales contract and warranty conditions |
| Available Documents | Commercial documents, packing information, engine documentation, test information and agreed certification documents |
The 1,500-hour warranty reference is not a maintenance interval. Oil, filters, valve-clearance checks and other service requirements must follow the manual for the final ESN and operating conditions.
Frequently Asked Questions
What size generator set can the QSB5.9-G2 drive?
The engine provides 96 kW prime and 106 kW standby mechanical power at 1,500 RPM. With typical alternator efficiency and a 0.8 power factor, it is commonly evaluated around the 110–115 kVA prime and 120–125 kVA standby classes.
The final rating must be calculated using the selected alternator and complete generator-set design.
Is 96 kW the continuous operating power?
Not automatically. The supplied data identifies 96 kW as prime power. Continuous power is a separate duty rating and must be confirmed through the applicable engine performance documentation.
Can the QSB5.9-G2 be used for 60Hz?
The listed power values apply at 1,500 RPM for 50Hz operation. A 60Hz generator set normally requires 1,800 RPM and a separately confirmed engine curve, ECM calibration and cooling configuration.
Does CPL 4813 guarantee direct replacement?
No. CPL 4813 is an important configuration reference, but direct replacement also depends on the ESN, ECM calibration, harness, flywheel housing, coupling, starting voltage, cooling system and controller integration.
Can a QSB5.9-G3 directly replace a G2?
Not without verification. Even if the engines share a general family platform, the power output, ECM calibration, cooling demand, alternator capacity and external components may differ.
Does the common-rail system guarantee better frequency stability?
It supports more precise electronic fuel and speed control, but the final frequency response depends on the complete engine calibration, alternator inertia, controller, load step and commissioning.
Is Stage IIIA accepted in my market?
Acceptance depends on the destination country, application, production date and whether the genset is stationary, mobile or rental equipment. Confirm the current local requirement before ordering.
What information is required for a parts quotation?
Provide the engine serial number, CPL, part number where available, component description, photographs and required quantity.
What information is required for a complete-engine quotation?
Provide the existing engine nameplate, ESN, CPL, genset model, required prime and standby power, frequency, alternator model, controller model, starting voltage and destination.
Request a QSB5.9-G2 Configuration and Genset-Matching Check
To prepare an accurate quotation, the engine must be matched to the required electrical output and the existing mechanical, cooling and electronic interfaces.
Please provide:
- Required prime and standby genset output
- Voltage and frequency
- Alternator brand and model
- Power factor
- Original engine model and nameplate photo
- Engine serial number and CPL
- ECM and engine-harness information
- Controller brand and model
- 12V or 24V starting requirement
- Flywheel housing and coupling information
- Site altitude and maximum ambient temperature
- Emission or certification requirements
- Required supply scope
- Quantity and destination port
Get Your Engine & Parts Quote
Upload your parts list or send your ESN — we reply within 30 minutes. Engine down? Need fast replacement? Contact us to check today’s stock & delivery time.
