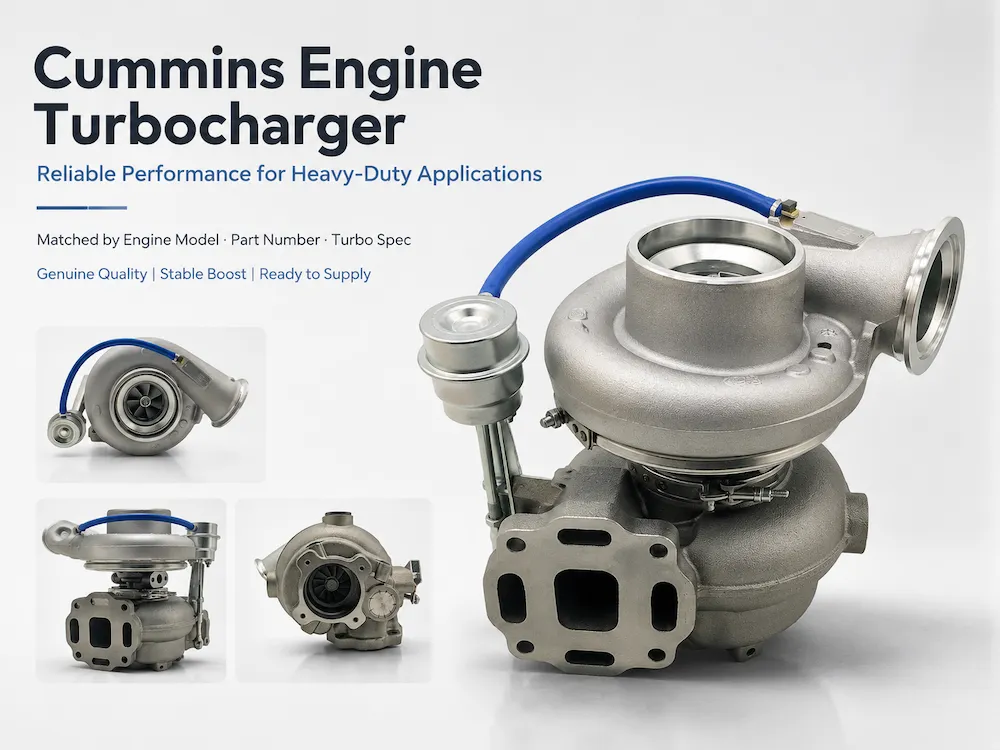

How to Choose the Right Cummins Turbocharger: Assembly, CHRA or Actuator?

A Cummins turbocharger is a key component of the engine air-handling system, but one of the most common sourcing problems is that suppliers may use similar product names for very different quotation scopes.

One supplier may quote a turbocharger without the actuator. Another may quote a complete Turbo Assembly with an electronic actuator already installed. A third quotation may actually cover a Repair Kit, CHRA, Actuator, Compressor Housing, Turbine Housing, or another separate component.

The names may appear similar, but the supplied products and prices are not directly comparable until the exact scope has been confirmed.

A turbocharger is also a high-speed precision component. Rotor balance, internal clearances, actuator position, boost-control strategy, and the relationship between the turbocharger and the engine control system are all part of the original engine design. Two units may look similar and have comparable mounting interfaces while using different compressor and turbine specifications, actuator control methods, housing configurations, or calibration requirements.

An incorrect replacement may cause:

• Abnormal boost pressure
• Slow turbo response
• Excessive exhaust backpressure
• Actuator faults
• Installation interference
• Incorrect air-flow delivery
• Engine performance outside the intended operating range

This article explains:

• What Turbocharger, Turbo Assembly, CHRA, and Repair Kit normally mean
• How a turbocharger works within the engine air-handling system
• The differences between Fixed Geometry, Wastegate, VGT, and two-stage systems
• Why an actuator cannot be matched by connector shape alone
• Which CHRA, housing, and actuator components may be supplied separately
• The difference between a turbocharger and a boost-pressure sensor
• Why an engine model alone is not sufficient for final matching
• How turbocharger nameplate numbers should be interpreted
• What changes between mining, construction, and generator-set applications
• What information to provide before ordering
• How to compare supplier quotations

Smoke, low power, abnormal boost, oil leakage, or unusual noise does not prove by itself that the turbocharger has failed. The actual cause should be confirmed by a qualified local workshop. This article focuses on how to identify and source the correct part after turbocharger replacement has been confirmed. It does not provide boost-adjustment, actuator-calibration, or turbo-repair procedures.

Who This Article Is For

• Repair shops and fleet maintenance buyers whose technicians have confirmed that a turbocharger requires replacement and who need to verify fitment and quotation scope before ordering
• Parts dealers and distributors building or expanding Cummins turbocharger inventory
• Engine remanufacturers sourcing Turbo Assemblies, CHRAs, actuators, housings, installation parts, and other confirmed replacement components
• Mining and construction equipment purchasing teams supporting haul trucks, excavators, loaders, drill rigs, dozers, cranes, and other Cummins-powered machinery
• Generator-set and industrial power maintenance teams supporting standby, prime-power, continuous-power, compressor, pump, and other stationary-engine applications

Turbocharger, Turbo Assembly, CHRA and Repair Kit: What Do They Mean?

The first step is to confirm exactly what the supplier is quoting.

A Turbo Assembly should not automatically be assumed to include an actuator, installation kit, oil pipes, or every control component.

A CHRA normally does not include the complete Compressor Housing, Turbine Housing, or external actuator. However, the terms Cartridge, Core Assembly, and Super Core are not used consistently across all suppliers. Always request the formal part number and an itemized BOM.

A useful quotation question is:

Is this quotation for a complete Turbo Assembly, a CHRA or Core Assembly, a turbocharger without the actuator, or a separate Actuator, Housing, or Repair Kit? Please confirm whether the Wastegate or VGT mechanism, installation gaskets, oil-line parts, and actuator are included.

What Does a Turbocharger Do?

A turbocharger uses exhaust-gas energy to drive a turbine wheel. The turbine wheel is connected by a shaft to the compressor wheel, which draws in and compresses intake air before sending it into the engine.

Its operation depends on the complete engine air-handling system, including:

• Engine displacement
• Rated power and speed
• Fuel delivery
• Exhaust-gas energy
• Intake restriction
• Charge-air cooling
• Exhaust restriction
• Engine load
• Ambient temperature
• Altitude
• Emissions configuration
• Wastegate or VGT control strategy, where applicable

The turbocharger increases the mass of air available to the engine. It works together with the fuel system, charge-air cooler, intake system, exhaust system, and engine control strategy to meet the intended power, emissions, and operating requirements.

Actual boost behaviour is influenced by:

• Engine speed and load
• Exhaust-gas flow and temperature
• Compressor and turbine geometry
• Intake and exhaust restriction
• Charge-air cooler condition
• Wastegate mechanism, where fitted
• VGT mechanism and actuator, where fitted
• Engine control system, where electronically managed

ECM and electronic-actuator control applies only to engines equipped with the relevant electronic system. A mechanical Fixed Geometry Turbo does not use the same control arrangement as an electronically controlled VGT Turbo.

Fixed Geometry, Wastegate, VGT and Two-Stage Turbochargers

The turbocharger type is a major matching factor.

Fixed Geometry Turbocharger

A Fixed Geometry Turbocharger uses a fixed turbine flow path. It does not use a variable-vane mechanism and may not use a Wastegate.

Before ordering, confirm:

• Turbo Model
• Compressor and turbine specifications
• Turbine Housing version
• Intake and exhaust interfaces
• Housing orientation
• Oil-feed and oil-drain interfaces
• Rotation and mounting arrangement
• Cummins and turbo-manufacturer part numbers

A simpler control system does not make Fixed Geometry Turbochargers universally interchangeable.

Wastegated Turbocharger

A Wastegated Turbocharger uses a bypass valve to direct part of the exhaust flow around the turbine wheel under specified operating conditions.

The system may include:

• Wastegate valve
• Actuator
• Diaphragm or pressure chamber
• Rod or linkage
• Bracket
• Control hose or pressure line
• Turbine Housing containing the Wastegate passage

Two Wastegated Turbochargers may use different actuator settings, rod lengths, valve travel, housing specifications, bracket positions, or pressure and vacuum-control arrangements.

Wastegate settings should not be adjusted casually to increase boost.

VGT — Variable Geometry Turbocharger

A VGT changes the effective turbine flow area through a variable-geometry mechanism.

Depending on the engine, VGT operation may contribute to:

• Boost control
• Low-speed response
• Engine braking
• Exhaust-gas recirculation support
• Exhaust-temperature management
• Emissions-system operation

VGT matching may involve the Turbo Model, VGT mechanism version, electronic actuator, mechanical actuator interface, connector, control protocol, position feedback, ECM compatibility, and installation or calibration requirements.

Two VGT actuators should not be considered interchangeable merely because the connectors look the same.

Two-Stage or Multi-Stage Turbocharging

Some engines use two turbochargers or a compound air-handling system.

The units may be identified as:

• High-Pressure Turbo
• Low-Pressure Turbo
• Primary or secondary stage
• Upper or lower stage, depending on the system
• Part of a complete two-stage assembly

When requesting a quotation, confirm which stage is required, the part numbers for both units, the connection between the two stages, bypass or control-valve arrangement, pipework and brackets, and whether the requirement covers one unit or the complete system.

A turbocharger from one stage should not be matched as though it were a conventional single-stage unit.

Turbo Actuators: Control Type and Calibration

An actuator may control Wastegate valve position, VGT vane position, or another turbocharger control mechanism.

Actuators may be electronic, pressure-operated, vacuum-operated, pneumatic, or mechanically linked. The correct type depends on the specific engine and turbocharger configuration.

Electronic Actuators

Some electronic actuators require one or more of the following after separate replacement or reinstallation:

• Mechanical position calibration between the actuator and VGT mechanism
• Installation learning procedure
• Position confirmation
• Diagnostic-tool procedure
• ECM-related service operation
• Complete pre-calibrated assembly replacement

The exact requirement depends on the Turbo Model, actuator part number, control-system version, engine ESN, ECM configuration, and whether the actuator is supplied separately or installed on the Turbo Assembly.

Do not assume that all electronic actuators use the same installation process.

Wastegate and Pneumatic Actuators

Confirm the part number, rod length, bracket location, control-line arrangement, pressure or vacuum specification, factory preset, and whether the actuator can be replaced separately.

Do not alter rod length, spring setting, or actuator position to increase boost without an approved technical procedure.

CHRA, Compressor Housing and Turbine Housing: Can They Be Replaced Separately?

Whether a component can be replaced separately depends on formal service-parts availability, damage location, condition of the remaining housings, condition of the VGT or Wastegate mechanism, actuator condition, workshop capability, balance and testing requirements, and applicable service instructions.

CHRA Replacement May Be Considered When:

• A formal compatible CHRA part number exists
• Compressor and Turbine Housings remain serviceable
• No housing crack, severe corrosion, distortion, or foreign-object damage is present
• VGT or Wastegate components remain serviceable
• The workshop can complete correct assembly, cleaning, inspection, and testing

Complete Turbo Assembly Replacement May Be More Appropriate When:

• Housing damage is present
• VGT mechanism is worn, seized, or damaged
• Wastegate structure is damaged
• Actuator is incompatible or unavailable separately
• No formal CHRA or Repair Kit exists
• Multiple major components require replacement
• The local workshop lacks high-speed turbocharger repair capability

Repair Kit Use

A Repair Kit should be considered only when:

• The turbocharger is designed and documented for service
• The required parts are available under a confirmed kit number
• Shaft, wheels, center housing, bearing bores, and housings remain within service limits
• The workshop can perform appropriate cleaning, measurement, assembly, balancing, and testing

The presence of a low-cost Repair Kit does not mean that every damaged turbocharger is suitable for rebuilding.

Turbocharger and Boost-Pressure Sensor Are Different Parts

Position feedback may be integrated into the actuator rather than supplied as a separate sensor.

A boost-related fault code may involve the turbocharger, actuator, boost-pressure sensor, wiring, intake leak, exhaust restriction, ECM, calibration, or another engine condition.

A sensor code does not prove that the mechanical turbocharger is damaged.

Smoke, Low Power or Abnormal Boost Does Not Always Mean Turbocharger Failure

Diagnosis should be completed before the turbocharger is ordered.

A purchasing team should confirm that turbocharger replacement has been recommended, whether the actuator also requires replacement, whether oil-feed and drain pipes require replacement, whether installation gaskets are required, whether the intake and exhaust systems have been inspected, and whether the root cause of the previous failure has been addressed.

Interfaces, Oil Lines and Housing Orientation

A turbocharger may have the correct core model but still be unsuitable because of interface differences.

Compressor-Side Interfaces

Confirm:

• Compressor Inlet diameter and connection type
• Compressor Outlet diameter and connection type
• Outlet direction
• Hose, flange, V-band, or clamp design
• Charge-air pipe orientation
• Sensor or auxiliary ports

Turbine-Side Interfaces

Confirm:

• Exhaust-manifold flange
• Bolt pattern
• Turbine Outlet type
• Outlet direction
• V-band, flange, or elbow arrangement
• Exhaust brake, aftertreatment, silencer, or exhaust-pipe interface
• Wastegate or VGT housing configuration

Oil Interfaces

Confirm:

• Oil Feed connection
• Oil Drain connection
• Line orientation
• Sealing method
• Return-line routing
• Whether the feed line is clean and unrestricted
• Whether the drain line is free of carbon, sealant, crushing, or installation interference

The oil-drain line should follow the original design for routing, slope, and connection so that oil can return correctly.

Coolant Interfaces

Some turbochargers are water cooled. Confirm whether coolant connections are present, inlet and outlet location, fitting type, pipe routing, and whether coolant lines are included.

Actuator Interfaces

Confirm the electronic connector, wiring orientation, pressure, vacuum, or control-line connection, bracket position, linkage location, and clearance around the actuator.

Housing orientation should be confirmed from pre-removal installation photos whenever possible.

Why the Engine Model Alone Is Not Enough

An engine-family name identifies only the general platform.

The same Cummins engine family may use different turbochargers because of:

• Engine ESN
• CPL
• Rated power
• Rated speed
• Emissions stage
• Production year
• Vehicle, construction, mining, generator, marine, or industrial application
• Fixed Geometry, Wastegate, or VGT configuration
• Single-stage or multi-stage arrangement
• Different housing orientation
• Different intake and exhaust interfaces
• Different actuator and ECM versions
• Part-number supersession
• Previous repair, conversion, or modification

Core Matching Information

Use the following together:

• Current turbocharger nameplate
• Cummins Assembly Part Number
• Turbo-manufacturer part number
• Turbo Model
• Actuator part number, where applicable
• Engine ESN and nameplate
• Current supersession information

The ESN identifies the original engine configuration. The current turbocharger nameplate identifies what is installed now. These may differ after previous repairs or modifications, so do not rely on only one source.

Supporting Information

• Turbocharger overall photos
• Compressor-side and turbine-side photos
• Intake and exhaust interfaces
• Oil Feed and Drain interfaces
• Coolant interfaces, where applicable
• Actuator and connector photos
• Equipment make and model
• Application
• Rated power and speed
• CPL
• Emissions stage
• Housing orientation before removal

Turbocharger Nameplate Numbers Should Not Be Mixed Up

A turbocharger nameplate may contain several different numbers:

These numbers are not interchangeable.

An actuator part number does not identify the complete Turbo Assembly. A CHRA number does not identify the housings. A serial number may not be sufficient for a supplier quotation. A Turbo Model may include several housing or actuator configurations.

Provide a clear photo of the complete nameplate rather than manually typing only one number. Letters, suffixes, and similar-looking digits are easy to misread.

Matching Priorities by Application

Mining Equipment

Mining applications often involve heavy load, long operating hours, high dust exposure, high ambient temperature, high altitude, high exhaust temperature, and high downtime cost.

Confirm:

• Engine ESN and rated power
• Turbocharger nameplate
• Equipment duty cycle
• Operating altitude
• Intake-filter condition and restriction
• Oil-feed and drain condition
• Exhaust-system condition
• Product traceability
• Warranty
• Emergency lead time

A search term such as “N14 mining turbo” or “KTA19 turbocharger” is only a starting point.

Construction Machinery

Construction equipment may use the same base engine in several OEM installations, but the equipment layout may change:

• Compressor Housing direction
• Turbine Outlet direction
• Actuator position
• Oil-line routing
• Mounting bracket
• Intake-pipe configuration
• Exhaust-pipe interface

Provide the equipment brand, complete equipment model, engine ESN, turbocharger nameplate, and pre-removal installation photos.

Generator Sets

Generator-set matching should consider:

• Standby, prime-power, or continuous-power rating
• Engine rated power
• Fixed operating speed
• Ambient temperature
• Altitude
• Exhaust-pipe and silencer backpressure
• Aftertreatment configuration
• Long-term low-load operation
• Generator-set OEM configuration

The required part is the genset engine turbocharger, not the electrical alternator.

A vehicle turbocharger should not be installed on a generator engine merely because the base engine family is similar.

Industrial Engines

For compressors, pumps, crushers, drilling equipment, and other industrial applications, confirm the engine duty cycle, rated power and speed, installation orientation, intake restriction, exhaust-system layout, ambient and altitude conditions, and equipment OEM configuration.

Genuine New, Reman and Aftermarket Options

A turbocharger is a high-speed precision component closely linked to the engine air-handling and emissions systems. Lowest price should not be the only selection factor.

For mining equipment and continuously operated generator sets, prioritize correct part-number matching, actuator compatibility, batch consistency, product traceability, test information, warranty, and lead time.

Cummins Turbocharger RFQ Checklist

Engine and Equipment Information

• Engine model
• Engine ESN
• CPL
• Engine nameplate photo
• Rated power
• Rated speed
• Emissions stage, if known
• Equipment make
• Equipment model
• Application
• Duty cycle
• Standby / Prime / Continuous rating, for gensets
• Operating altitude, if relevant
• Ambient-temperature range, if relevant
• Required quantity
• Destination country
• Required delivery date

Turbocharger Identification

• Complete turbocharger nameplate photo
• Cummins Assembly Part Number
• Turbo Manufacturer Part Number
• Turbo Model
• Serial Number
• Customer / OEM Number
• Actuator Part Number
• CHRA Part Number, where applicable

Required Product Scope

• Complete Turbo Assembly
• Turbocharger without Actuator
• CHRA / Core Assembly
• Actuator
• Compressor Housing
• Turbine Housing
• Repair Kit
• Installation Kit
• Oil Feed Line
• Oil Drain Line
• Not Yet Confirmed

Product Preference

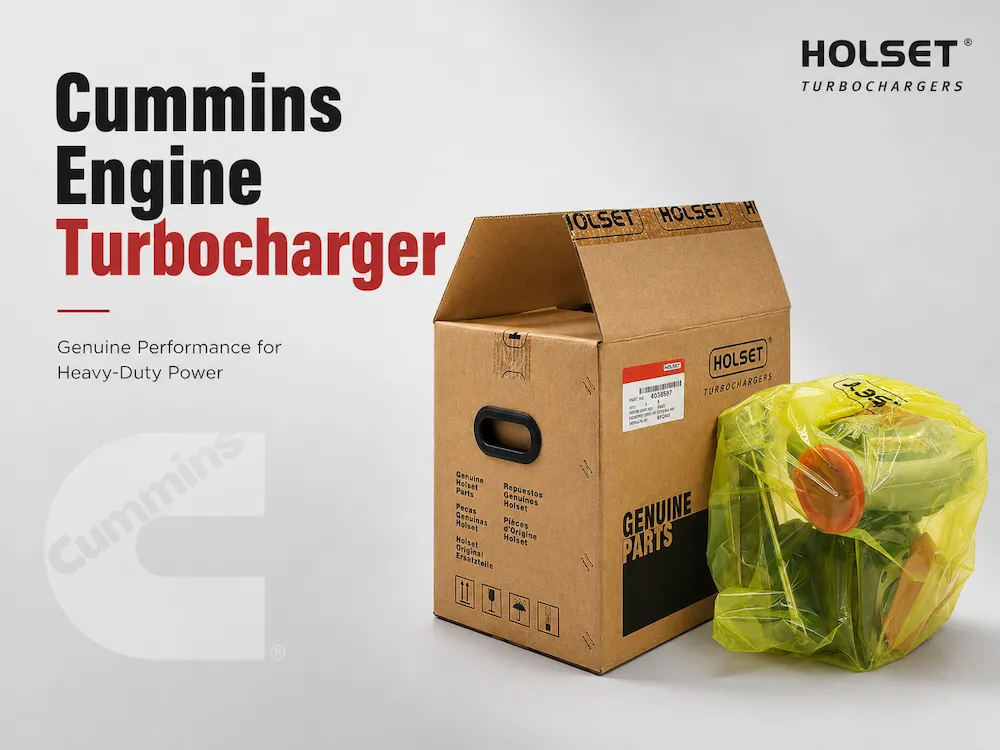

• Genuine New
• Genuine / Recognized Reman
• Qualified Independent Reman
• Aftermarket New
• No Preference
• Core return acceptable: Yes / No

Required Photos

• Complete turbocharger
• Compressor Inlet
• Compressor Outlet
• Turbine Inlet
• Turbine Outlet
• Oil Feed
• Oil Drain
• Coolant interfaces, where applicable
• Actuator
• Connector
• Linkage
• Mounting flange
• Housing orientation before removal
• Previous packaging or invoice, if available

Symptoms such as smoke, low power, oil leakage, abnormal boost, or noise may be provided as background information. They cannot identify the correct part number and do not replace local diagnosis.

How to Compare Supplier Quotations

Prices are directly comparable only when the part number, product condition, actuator, housings, and supplied scope are equivalent.

If two quotations differ significantly, confirm whether one is a CHRA and the other is a complete Turbo Assembly, one excludes the actuator, one is New and the other is Reman, one includes a Core Charge, one includes installation parts, or the part numbers and supersessions are different.

The price difference may reflect product scope rather than quality alone.

How ZEB Power Supports Cummins Turbocharger Sourcing

ZEB Power supplies Cummins turbochargers and related air-handling components for mining equipment, construction machinery, generator sets, industrial engines, compressors, pumps, and other Cummins-powered equipment.

Using the engine ESN, current turbocharger part number, complete nameplate, actuator information, interface photos, and equipment application details, we can help review the applicable scope for:

• Turbocharger
• Complete Turbo Assembly
• Turbocharger without Actuator
• CHRA / Core Assembly
• Compressor Housing
• Turbine Housing
• Wastegate Actuator
• VGT Electronic Actuator
• Repair Kit
• Installation Kit
• Oil Feed and Drain parts
• Related seals and gaskets

Available sourcing options may include Genuine New, recognized Reman, and qualified Aftermarket New products. Actual availability depends on the exact part number, configuration, and current supply channel.

Where possible, our quotation will clearly identify:

• Turbo Model
• Cummins Assembly Part Number
• Turbo-manufacturer part number
• Original and superseded part numbers
• Fixed Geometry, Wastegate, VGT, or two-stage type
• Actuator type and whether it is included
• Calibration or learning requirement, where known
• New, Reman, or Aftermarket condition
• Product scope
• Core requirement
• Lead time
• Warranty terms

ZEB Power supports parts matching and quotation confirmation. We do not replace the local workshop’s responsibility for engine diagnosis, oil-system inspection, turbocharger installation, actuator calibration, or post-installation testing.

Frequently Asked Questions

Is a Turbo Assembly the same as a CHRA?

No. A CHRA normally contains the center housing and rotating components. A complete Turbo Assembly may also include the Compressor Housing, Turbine Housing, Wastegate or VGT mechanism, and actuator.

Is a Fixed Geometry Turbocharger the same as a Wastegated Turbocharger?

No. A Fixed Geometry Turbo uses a fixed turbine flow path. A Wastegated Turbo includes a bypass mechanism used to limit or regulate exhaust flow through the turbine.

Can a VGT Turbocharger replace a Wastegated Turbocharger?

They should not be treated as direct replacements. A change should be considered only when supported by a formal approved supersession, a validated conversion solution, or complete engineering confirmation.

Can two VGT actuators be interchanged if the connectors are the same?

No. Confirm the actuator part number, mechanical interface, control version, position-feedback system, and calibration requirement.

Does every electronic actuator require the same calibration procedure?

No. Some require actuator-to-turbo calibration, installation learning, diagnostic-tool procedures, or replacement as a complete pre-calibrated assembly. Requirements depend on the Turbo Model, actuator, engine, and control system.

Can only the Compressor Housing be replaced?

Possibly. The replacement housing must match the current CHRA, compressor wheel, interface, and orientation. The Turbine Housing, actuator, VGT or Wastegate mechanism, and remaining components should also be inspected.

Can a CHRA be installed instead of replacing the complete turbocharger?

Possibly, when a formal compatible CHRA exists and the external housings, actuator, and control mechanisms remain serviceable. Correct assembly and testing are required.

Does oil leakage always mean the turbocharger seals have failed?

No. A restricted oil drain, crankcase-breather problem, excessive engine wear, intake or exhaust condition, and lubrication-system issue may produce similar symptoms.

Does black smoke or low power always mean the turbocharger is damaged?

No. Intake restriction, charge-air leakage, exhaust restriction, fuel-system faults, sensors, and internal engine problems can produce similar symptoms.

Can a mining-engine turbocharger and a generator-engine turbocharger be the same?

Only when the formal part number, engine configuration, interfaces, and applicable technical information confirm that they are the same. Do not decide by engine-family name alone.

Can I request a quotation without the old turbocharger part number?

Yes. Provide the engine ESN, equipment model, complete turbocharger photos, nameplate condition, actuator photos, interfaces, and installation orientation for an initial review.

What is the most important information for an accurate quotation?

Provide the engine ESN, complete turbocharger nameplate photo, current turbocharger part number, Turbo Model, actuator part number where applicable, complete interface photos, equipment make and model, application, and required product scope.

Conclusion

A Cummins turbocharger should not be ordered only by engine family, housing appearance, or mounting-hole pattern.

After replacement has been confirmed, verify:

• Engine ESN and CPL
• Turbo Model
• Cummins Assembly Part Number
• Turbo-manufacturer part number
• Fixed Geometry, Wastegate, VGT, or multi-stage configuration
• Actuator part number and calibration requirement
• Compressor and Turbine Housing interfaces
• Oil Feed and Drain interfaces
• Coolant interfaces, where applicable
• Housing orientation
• Whether the quotation covers a complete Turbo Assembly, CHRA, Actuator, Housing, Repair Kit, or Installation Kit
• Whether the product is New, Reman, or Aftermarket

Ready to source a Cummins turbocharger? Send the engine ESN, complete turbocharger nameplate, current part number, actuator information, equipment make and model, and clear photos of the turbocharger and its interfaces. Our team will help review the applicable part and provide a clearly defined quotation scope.
