Cummins Water Pump Replacement & Selection Guide

When a Cummins engine shows coolant leakage, unusual front-end noise, high coolant temperature, or repeated overheating, the water pump is one of the cooling-system components that should be inspected.

However, overheating does not automatically mean that the water pump has failed. A thermostat that does not open correctly, a restricted radiator, fan or belt-drive problems, low coolant level, trapped air, a head-gasket leak, or another engine fault can produce similar symptoms.

Matching the correct replacement pump can also be difficult. Many inquiries contain only a broad description such as “6BT water pump” or “QSB6.7 coolant pump.” The same engine family may use different pumps because of CPL, application, drive arrangement, front-end accessory layout, production configuration, and part-number supersession.

This guide explains the difference between a water pump, coolant pump, and water pump assembly; what a complete assembly may include; when leakage, noise, or overheating may indicate a pump problem; how gear-driven and belt-driven pumps differ; and how to match the correct Cummins water pump using the ESN, current part number, and old-part details.

Water Pump, Coolant Pump and Water Pump Assembly: What Is the Difference?

In the diesel-engine parts market, “water pump” and “coolant pump” usually refer to the engine coolant circulation pump. However, the exact quotation scope may vary between suppliers.

A quotation should not be compared only by the product name “water pump.” The buyer should determine whether the offer covers:

• A complete water pump assembly
• A pump core or internal pump unit
• A separate housing
• A repair kit
• An impeller, shaft, bearing, or seal
• A pump supplied with a drive gear or pulley
• A marine engine coolant pump or a raw-water pump

For marine applications, identifying the pump type at the beginning of the inquiry prevents one of the most common water-pump quotation errors.

Do Leakage, Noise and Overheating Always Mean Water-Pump Failure?

No.

Possible water-pump failure signs include:

• Continuous coolant leakage near the pump
• Abnormal bearing noise
• Shaft or pulley movement
• Excessive pump vibration
• Insufficient coolant circulation
• Abnormally high engine temperature
• Damaged impeller, gear, or pulley

These signs still need to be considered together with the condition of the complete cooling system. A high temperature reading or coolant mark near the pump is not enough by itself to justify replacement.

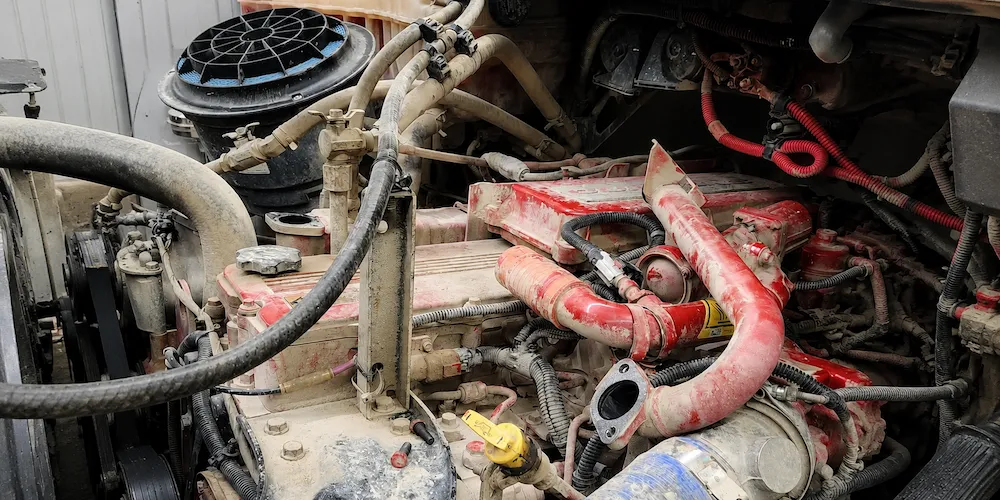

Identify the Exact Source and Type of Leakage

Coolant may leak from:

• The pump mechanical seal
• The weep hole or inspection hole
• The mounting gasket
• The pump-to-engine interface
• A coolant pipe or hose
• The thermostat housing
• A nearby component above the pump

One detail is frequently misunderstood: on some engine designs, a light, dry, or temporary coolant trace around the weep hole is not enough by itself to prove that the pump must be replaced. Certain mechanical seals may allow a very small amount of coolant to support seal-face lubrication.

However, a light trace, temporary dampness, continuous dripping, and steady coolant flow are not the same condition.

Continuous leakage, visible flow, or leakage combined with shaft movement, bearing noise, or vibration should be evaluated according to the service limits for the specific engine. The statement that “a small trace may be acceptable” should never be applied to every weep-hole leak.

The Noise May Come From Another Front-End Component

Noise near the pump may also come from:

• Fan bearings
• Belt tensioner
• Idler pulley
• Alternator bearings
• Fan clutch
• Front gear train
• Loose or worn drive belt

The source should be identified before the pump is removed. Otherwise, a serviceable pump may be replaced while the actual source of the noise remains.

Engine Overheating Does Not Automatically Prove Pump Failure

The radiator removes excess engine heat, the fan moves air through the radiator, and the thermostat regulates coolant flow and operating temperature. A problem in any of these areas can reduce cooling performance.

Actual overheating may result from:

• Low coolant level
• Air trapped in the cooling system
• Internal or external radiator restriction
• Thermostat failure
• Fan or fan-clutch malfunction
• Loose, slipping, damaged, or broken drive belt
• Failed tensioner
• Collapsed or restricted coolant hose
• Pressure-cap problem
• Combustion gas entering the cooling system
• Excessive engine load

It is also important to separate real overheating from a false temperature indication. A faulty coolant-temperature sensor, wiring circuit, gauge, or display may show an excessive temperature even when the coolant is not actually overheating. Independent temperature verification may be required before cooling-system parts are replaced.

This guide addresses how to match the correct water pump after replacement has been confirmed. It does not replace cooling-system diagnosis by a qualified workshop.

Why the Engine Model Alone Is Not Enough

Descriptions such as “6BT water pump” or “QSL9 water pump” identify only the general engine family.

The exact pump may vary because of:

• Different CPLs
• Different production years or engine configurations
• Industrial, construction, generator-drive, automotive, or marine applications
• Gear-driven or belt-driven layouts
• Different front-end accessory arrangements
• Different pump housings and coolant-port designs
• Different engine ratings and cooling requirements
• Part-number supersession
• Previous replacement of the front housing, pump, gear, or pulley

Cummins provides official online resources including parts.cummins.com and QuickServe Online. Parts information may be searched by ESN, part number, or description, while QuickServe Online provides engine-specific parts and service information associated with an ESN or engine family. Access rights and platform functions may change, so final matching should be based on the current official records available for the engine.

For water-pump selection, the ESN and current pump part number are more reliable than the base engine model alone.

Cummins Water Pump Matching Checklist

A replacement pump with a different number from the removed pump is not automatically incorrect. The original number may have been superseded.

The supplier should state:

• Removed pump part number
• Quoted replacement number
• Supersession relationship
• Whether it is a direct replacement
• Whether the housing, pipework, gear, pulley, or installation parts must also change
• Whether the quoted assembly scope differs from the old version

Descriptions such as “new type,” “updated model,” or “replacement water pump” are not sufficient without the actual part number and scope.

Photos can help identify the body shape, mounting holes, coolant ports, and drive arrangement. They cannot confirm interchangeability when two pumps have similar external designs but different impellers, internal passages, or part numbers.

What Does a Cummins Water Pump Assembly Usually Include?

The term “water pump assembly” normally suggests a relatively complete unit, but the exact contents still depend on the part number and supplier quotation.

A buyer should not assume that a complete assembly automatically includes the drive gear, pulley, mounting gasket, O-rings, or fittings.

Gear-Driven, Belt-Driven and Marine Water Pumps

Gear-Driven Water Pumps

Some Cummins engines use a front gear train to drive the water pump.

Confirm:

• Whether the gear is included
• Gear tooth count and mounting design
• Whether the old gear must be reused
• Shaft-to-gear connection
• Required fasteners
• Front-housing compatibility

Matching mounting holes do not prove that the original gear can be transferred to the new pump.

Belt-Driven Water Pumps

Other engines use a V-belt or multi-rib belt.

Confirm:

• Whether the pulley is included
• Pulley diameter and groove count
• Pump rotation direction
• Fan mounting arrangement
• Belt routing
• Tensioner and idler configuration

The correct belt depends on the combined fan, alternator, water-pump, and accessory layout. It should not be selected from the pump alone.

Marine and Heat-Exchanger Systems

Marine and special applications may include:

• Engine coolant circulation pump
• Raw-water or seawater pump
• Heat exchanger
• Separate expansion tank

The raw-water pump and engine coolant pump are different components. The inquiry should state whether the requirement is for an:

• Engine Coolant Water Pump
• Raw Water Pump
• Sea Water Pump

Installation Parts, Coolant Refill and System Bleeding

After the main pump has been matched, the installation scope should also be reviewed.

Possible related items include:

• Water-pump mounting gasket
• Pump O-rings
• Coolant-pipe seals
• Thermostat-housing gasket
• Bypass-pipe O-rings
• Drive belt
• Belt tensioner
• Idler pulley
• Gear or pulley fasteners
• New coolant
• Cooling-system cleaning or refill materials

A correct main pump does not guarantee that all installation parts are included.

Confirm whether the engine uses:

• Paper gasket
• Metal gasket
• O-ring
• Liquid sealant
• A combination of sealing methods

Replacing the pump normally requires draining and refilling the cooling system. The correct service procedure should be followed for:

• Coolant selection
• Mixing and additive requirements
• System bleeding
• Final level check
• Leak inspection

Coolant should not be selected only by color.

Should the Thermostat, Belt and Tensioner Be Checked at the Same Time?

Yes, they should be inspected, but they do not always need to be replaced.

Thermostat

A thermostat problem may cause:

• Slow warm-up
• Low operating temperature
• High coolant temperature
• Incorrect coolant circulation

If the engine overheats but the pump has no clear mechanical failure, the thermostat should be included in the inspection.

Drive Belt

For a belt-driven pump, check:

• Looseness
• Slipping
• Cracks or wear
• Coolant or oil contamination
• Correct belt profile
• Shared drive with the alternator or fan
• Correct tension

Tensioner and Idler

A failed tensioner or idler bearing may cause:

• Belt movement or jumping
• Insufficient pump drive
• Front-end noise
• Uneven belt wear
• Reduced pump speed

Replacement should depend on condition, operating hours, repair scope, and inspection results rather than being automatically bundled with every water-pump order.

Genuine, ReCon, Remanufactured, Repair Kit or Aftermarket Pump?

Water-pump quality cannot be judged from appearance, weight, or packaging alone.

Important evaluation points include:

• Correct part number and engine application
• Housing machining
• Impeller material and geometry
• Shaft and bearing quality
• Seal material and assembly
• Gear or pulley accuracy
• Leakage and rotation checks
• Batch traceability
• Warranty terms

Genuine New Parts

Genuine new pumps are often preferred for:

• Critical equipment
• Continuous-duty operation
• Projects with high downtime costs
• Applications requiring clear traceability and warranty support

Confirm the part number, packaging, source, and warranty conditions.

Cummins ReCon or Independent Remanufactured Pumps, If Available

Not every water-pump part number has a Cummins ReCon or independent remanufactured option.

When a remanufactured option exists, confirm:

• Remanufactured part number
• Remanufacturer
• Replaced wear components
• Whether the housing was reused
• Whether bearings, seals, shaft, or impeller were renewed
• Leakage or operating test
• Core Charge
• Core-return requirement
• Warranty

A product described only as “reman” should not automatically be treated as Cummins ReCon.

Water Pump Repair Kits

A repair kit is most suitable for a workshop with the correct pressing, measuring, assembly, and inspection capability.

Confirm:

• Kit contents
• Condition of the original housing and shaft bore
• Required special tools
• How shaft condition and seal performance will be checked after assembly
• Whether the repair cost and risk are lower than replacing the complete assembly

A complete assembly is usually easier to control when downtime is expensive, workshop capability is limited, or the old pump damage is not fully known.

High-Quality Aftermarket Pumps

A high-quality aftermarket pump may meet budget and lead-time requirements, but the buyer should confirm:

• Exact part-number matching
• Housing and port dimensions
• Impeller and bearing specification
• Seal source and material
• Included drive components
• Factory inspection or test
• Batch traceability
• Warranty

Avoid choosing a pump only because it looks similar or has the lowest price.

How to Compare Water Pump Quotations

Prices are directly comparable only when the part number, assembly scope, drive components, installation parts, and product condition are equivalent.

RFQ Checklist: Provide Information in Two Stages

Initial Inquiry

Provide:

• Engine Model
• ESN
• CPL
• Engine Nameplate Photo
• Existing Water Pump Part Number
• Required Product: Complete Water Pump / Water Pump Assembly / Housing / Repair Kit
• Application
• Quantity
• Destination Country
• Genuine / ReCon / Reman / Aftermarket Preference

For marine applications, state whether the requirement is for the engine coolant pump or raw-water pump.

After the Old Pump Has Been Removed

Add:

• Overall pump photo
• Mounting-face photo
• Drive-end photo
• Part-number and casting-mark photos
• Leakage or damage-location photos
• Whether the gear or pulley must be included
• Required gaskets and O-rings
• Failure symptoms as supporting information
• Whether superseded numbers are acceptable
• Required delivery time

What the Quotation Should State

Ask the supplier to identify:

• Final quoted part number
• Original and superseded numbers
• Applicable engine and application
• Complete assembly or repair component
• Gear or pulley included
• Mounting gasket and O-rings included
• Product condition and source
• Quantity and quotation unit
• Warranty and lead time
• Excluded items

Not sure whether you need a complete pump assembly, pump core, housing, or repair kit? Provide the engine ESN/CPL, nameplate photo, old pump part number, and clear old-part photos so the applicable parts and quotation scope can be checked. Diagnosis of the pump and the actual cause of overheating should still be completed by the local workshop.

How ZEB Power Supplies Cummins Water Pumps

Based on the engine model, ESN, CPL, old pump part number, nameplate, and old-part photos, ZEB Power can help verify the Cummins water pump and related components required for the application.

Depending on the exact engine and part number, additional items may also be checked, including:

• Pump housing
• Repair kit
• Drive gear
• Pulley
• Installation seals
• Related thermostat parts
• Belt-drive components

Typical applications include:

• Construction equipment
• Mining machinery
• Generator sets
• Industrial power equipment

The quotation can identify:

• Water-pump part number
• Original and superseded numbers
• Applicable engine configuration
• Assembly scope
• Drive components included
• Installation seals included
• Product condition and source
• Lead time
• Excluded items

Depending on the specific part number and current supply channel, available options may include genuine new, Cummins ReCon, independent remanufactured, or high-quality aftermarket parts.

Cooling-system diagnosis, pressure testing, pump rebuilding, and engine-fault evaluation should be completed by a qualified local workshop. ZEB Power supports part-number matching and quotation verification rather than replacing on-site diagnosis.

Need a Cummins water pump? Send the engine ESN/CPL, nameplate photo, old pump part number, drive-end photo, and mounting-face photo to verify the applicable version, supersession, and quotation scope.

Frequently Asked Questions

1. Are a water pump and coolant pump the same component?

Usually, both terms refer to the engine coolant circulation pump.

The actual product scope must still be confirmed by part number because the housing, gear, pulley, gasket, or O-rings may not be included.

2. Does a Cummins water pump assembly always include the gear?

No.

Some pump assemblies include the drive gear, while others require the original gear to be reused or a separate gear to be purchased.

3. Does coolant around the weep hole mean the pump must be replaced?

Not always.

Some engine designs may allow a light or temporary trace. Continuous dripping, steady flow, shaft movement, or bearing noise should be evaluated according to the applicable service limits.

4. Does overheating prove that the water pump is faulty?

No.

A thermostat, radiator, fan, belt, tensioner, coolant-level, trapped-air, or internal engine problem can cause real overheating. A faulty sensor, wiring circuit, or gauge may also create a false high-temperature indication.

5. Why can the same Cummins engine model use different water pumps?

The same engine family may have different applications, front-end accessory layouts, drive systems, production configurations, CPLs, and part-number versions. Match the pump by ESN and current part number.

6. Should the thermostat be replaced with the water pump?

Not automatically.

The thermostat should be inspected, but replacement should be based on its test results, engine condition, and repair scope.

7. Should I buy a complete pump or a repair kit?

A repair kit may be suitable when the original housing remains usable and the workshop has the correct pressing, measuring, and testing capability.

A complete assembly is usually easier to control when downtime is expensive, workshop capability is limited, or the damage scope is uncertain.

8. Is a marine raw-water pump the same as an engine water pump?

No.

The raw-water pump moves seawater or external water through the heat-exchanger circuit. The engine water pump circulates coolant inside the closed engine cooling circuit.

9. Are ReCon or remanufactured versions available for every Cummins water pump?

No.

Availability depends on the exact part number and supply channel.

10. Can I request a quotation without the old pump part number?

An initial search may be possible using the engine ESN and nameplate information.

Matching accuracy improves when the old pump, mounting face, drive end, and identification marks are photographed clearly.

Confirm the Failure Source, Then Match the Pump by ESN and Part Number

A Cummins water pump should not be purchased only by the base engine model, product photo, or the label “water pump assembly.”

Before ordering, confirm:

1. Whether the cooling-system problem has actually been traced to the pump
2. Engine ESN
3. Current pump part number
4. Original and superseded part numbers
5. Gear-driven or belt-driven arrangement
6. Complete assembly, pump core, housing, or repair kit
7. Gear or pulley included
8. Mounting gasket and O-rings included
9. Genuine, ReCon, remanufactured, repaired, or aftermarket requirement

Supplier prices become directly comparable only when the part number, assembly scope, drive components, installation parts, and product condition are equivalent.

Send ZEB Power the engine ESN/CPL, nameplate photo, old pump part number, drive-end photo, and mounting-face photo to verify the applicable Cummins water pump, supersession, and quotation scope.
