Perkins 403EA-11 Diesel Engine Assembly: Specifications, Applications and Spare Parts Guide
The Perkins 403EA-11 is a compact diesel engine assembly designed for small construction equipment, agricultural machinery, light industrial machines and small generator set applications. As part of the Perkins compact engine range, it is valued for stable output, efficient fuel use, simple maintenance and dependable operation in continuous-duty working conditions.
For equipment owners, rental companies, maintenance teams and engine replacement buyers, understanding the engine specifications, application performance and key spare parts of the Perkins 403EA-11 diesel engine can help improve equipment uptime, reduce maintenance risk and support long-term operating stability.
Perkins 403EA-11 Engine Overview
The Perkins 403EA-11 is a three-cylinder diesel engine with a compact structure and reliable mechanical performance. It is suitable for machines that require stable power output, low vibration, easy service access and consistent performance under daily operating loads.
This engine is commonly used in small excavators, compact construction equipment, agricultural machinery, industrial equipment and small generator sets. Its compact size makes it suitable for machines where installation space is limited but stable diesel power is still required.
| Item | Perkins 403EA-11 Engine Data |
|---|---|
| Engine Model | Perkins 403EA-11 |
| Engine Type | Three-cylinder diesel engine |
| Displacement | 1.131 L |
| Bore × Stroke | 77 × 81 mm |
| Compression Ratio | 23:1 |
| Typical Rated Speed | 1500 rpm for generator set applications |
| Maximum Output | 9.5 kW, approximately 12.9 HP |
| Governor Type | Mechanical governor |
Typical Applications of the Perkins 403EA-11 Diesel Engine
The Perkins 403EA-11 engine is suitable for applications where compact size, reliable output and convenient maintenance are important. In small construction machinery, it supports digging, loading, leveling and light-duty earthmoving work. In generator set applications, it helps maintain stable speed under variable electrical loads.
| Application | Engine Requirement | Perkins 403EA-11 Advantage |
|---|---|---|
| Small Excavators | Stable torque, compact installation and reliable daily operation | Supports digging, trenching, loading and light earthmoving work |
| Compact Construction Equipment | Low vibration, easy maintenance and consistent power delivery | Suitable for machines working in limited-space job sites |
| Agricultural Machinery | Fuel efficiency, durability and long working hours | Supports continuous operation in field and farm applications |
| Small Generator Sets | Stable rated speed and reliable output under variable load | Mechanical governor helps maintain steady operation |
| Light Industrial Equipment | Compact diesel power and simple service access | Supports long-term use with proper maintenance and spare parts supply |
Key Performance Characteristics of the Perkins 403EA-11
Although the Perkins 403EA-11 is a compact engine, it is designed to provide dependable performance for machines that operate under frequent start-stop cycles, variable load conditions and continuous working requirements.
- Compact three-cylinder structure for small equipment installation
- Stable diesel power output for light construction and agricultural machinery
- Mechanical governor for steady speed control in generator set applications
- Good fuel efficiency for daily operating cost control
- Simple maintenance structure for easier service and parts replacement
- Reliable engine platform for continuous-duty field operation
Core Perkins 403EA-11 Engine Components and Their Functions
The long-term reliability of a Perkins 403EA-11 engine depends not only on the engine assembly itself, but also on the condition and quality of its core spare parts. Pistons, cylinder liners, crankshaft components and filtration parts all play important roles in engine output, compression, lubrication and service life.

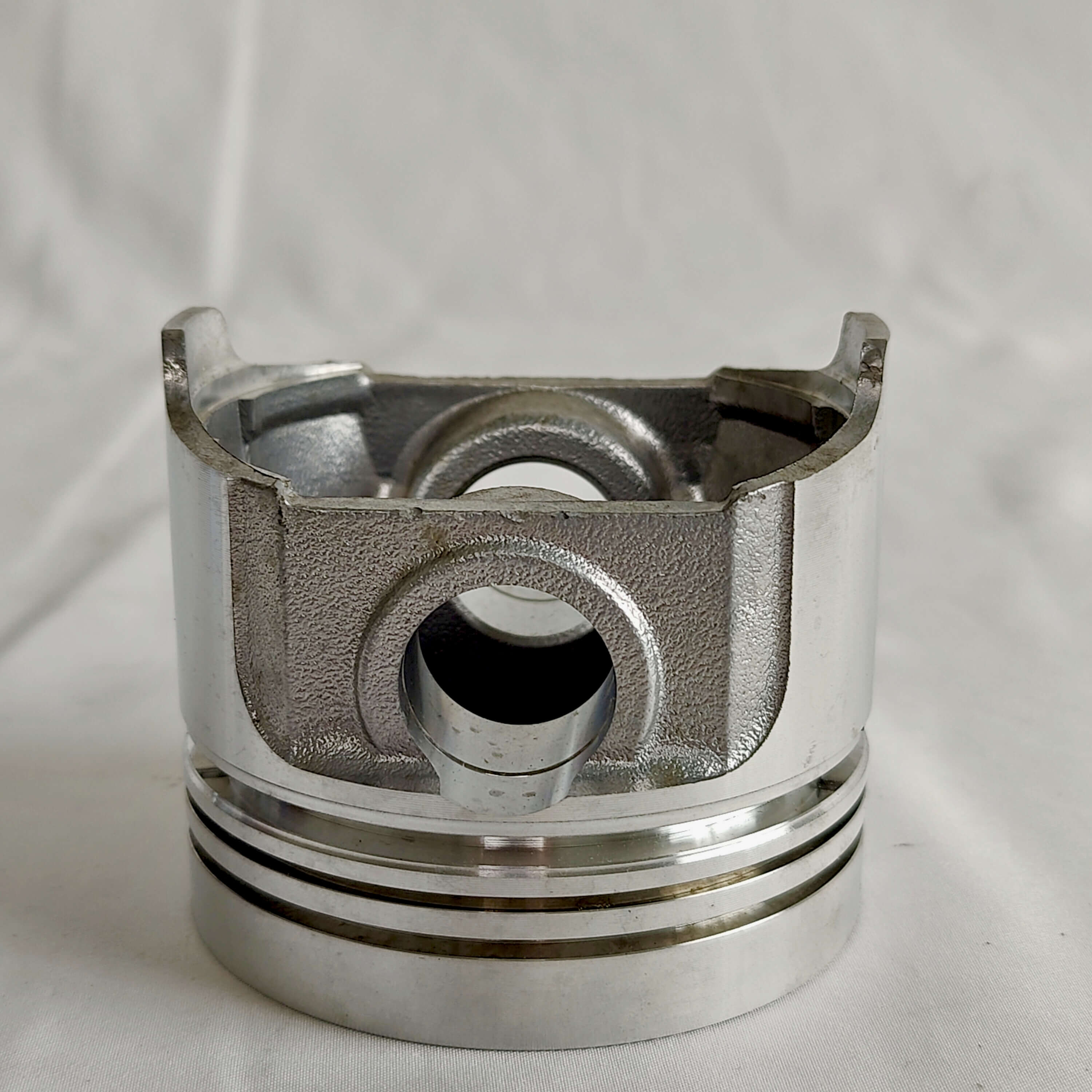

Piston Assembly
The piston assembly converts combustion pressure into mechanical movement. During the power stroke, high-pressure combustion gas pushes the piston downward, transferring force through the piston pin and connecting rod to drive the crankshaft.
A high-quality piston assembly helps maintain combustion efficiency, reduce blow-by and support stable power output. For the Perkins 403EA-11 engine, piston condition directly affects compression, fuel consumption, exhaust condition and overall engine performance.
- Reduces reciprocating mass for smoother operation
- Transfers combustion force to the connecting rod and crankshaft
- Supports thermal stability under high temperature and pressure
- Helps maintain engine compression when matched with proper piston rings
Cylinder Liner
The cylinder liner forms the working surface of the combustion chamber together with the piston and cylinder head. It guides piston movement, transfers heat to the cooling system and withstands side thrust during engine operation.
If the cylinder liner is worn, scratched or poorly sealed, the engine may suffer from compression loss, increased oil consumption, poor starting, reduced power and higher exhaust smoke. Proper liner condition is essential for maintaining the efficiency and service life of the Perkins 403EA-11 diesel engine.
- Guides piston movement inside the cylinder
- Supports compression and combustion chamber sealing
- Transfers heat away from the combustion area
- Helps reduce wear when matched with proper piston and ring components
Crankshaft
The crankshaft is the main rotating component of the engine. It converts the reciprocating motion of the piston and connecting rod into rotational output that drives the equipment or generator set.
For compact diesel engines working under repeated load changes, crankshaft strength and balance are important for reducing vibration, lowering noise and supporting long-term durability.
- Converts piston movement into rotational power
- Supports stable engine output under load
- Uses counterweights to reduce vibration and improve smooth operation
- Requires proper lubrication to prevent journal wear and bearing damage
Filtration Components
Filters are small but critical parts in the Perkins 403EA-11 maintenance system. Oil filters, fuel filters and air filters protect the engine from contamination, poor combustion and premature wear.
| Filter Type | Main Function | Impact on Engine Life |
|---|---|---|
| Oil Filter | Removes metal particles and contaminants from lubricating oil | Helps protect bearings, crankshaft, piston and internal moving parts |
| Fuel Filter | Prevents impurities and water from entering the fuel injection system | Helps maintain stable combustion and protect fuel system components |
| Air Filter | Provides clean intake air for combustion | Reduces cylinder wear and helps maintain fuel efficiency |
Perkins 403EA-11 Spare Parts Quality and Maintenance Value
Using high-quality Perkins 403EA-11 spare parts is essential for maintaining engine performance, reducing downtime and extending service life. Engine parts with accurate machining, proper material strength and reliable sealing performance can help the engine maintain stable compression, smooth operation and lower wear rate.
Inferior parts may cause premature piston wear, cylinder liner scuffing, oil leakage, poor compression, crankshaft damage or unexpected shutdown. For equipment working in construction, agriculture or power generation, these failures can lead to costly downtime and delayed project schedules.
| Spare Part | Why Quality Matters | Possible Problem from Poor Parts |
|---|---|---|
| Piston and Piston Rings | Maintain compression and combustion efficiency | Blow-by, oil burning, power loss and high fuel consumption |
| Cylinder Liner | Provides stable cylinder surface and heat transfer | Liner wear, scuffing, compression loss and overheating |
| Crankshaft and Bearings | Support smooth rotation and mechanical power output | Knocking noise, vibration, bearing failure and crankshaft damage |
| Filters | Protect lubrication, fuel and air intake systems | Contamination, injector wear, cylinder wear and reduced service life |
| Gasket and Seal Kits | Maintain sealing performance during repair | Oil leakage, coolant leakage and poor engine sealing |
Maintenance Recommendations for Perkins 403EA-11 Engines
Regular maintenance is important for keeping the Perkins 403EA-11 engine in stable working condition. Maintenance schedules should be adjusted according to operating environment, dust level, load condition and daily working hours.
- Check engine oil level and oil condition regularly
- Replace oil filters, fuel filters and air filters at recommended intervals
- Inspect cooling system condition to prevent overheating
- Check for oil leakage, coolant leakage and abnormal exhaust smoke
- Monitor engine noise, vibration and starting performance
- Use quality spare parts during overhaul or planned maintenance
- Prepare common maintenance parts to reduce downtime during field operation
Service Support and Supply Capability
A reliable engine and spare parts supplier plays an important role in the lifecycle management of the Perkins 403EA-11 engine. For equipment owners and maintenance companies, fast parts identification, stable inventory and technical support can reduce repair delays and improve equipment availability.
| Support Area | What ZEB POWER Provides |
|---|---|
| Engine Assembly Supply | Perkins 403EA-11 engine assembly supply for small equipment and generator applications |
| Spare Parts Support | Piston kits, filters, gasket kits, liners and other replacement parts |
| Parts Matching | Engine model checking and part number confirmation for maintenance teams |
| Technical Consultation | Support for engine replacement, configuration matching and maintenance planning |
| Export Delivery | Export packing and international delivery support for urgent project needs |
Customer Feedback from Practical Applications
In practical use, customers operating small construction equipment, agricultural machines and generator sets equipped with the Perkins 403EA-11 engine often focus on power stability, fuel consumption, noise level and maintenance convenience.
Operators report that the engine provides stable output under continuous workload, while its compact design and service-friendly structure make maintenance more convenient. With timely spare parts supply and proper preventive maintenance, the Perkins 403EA-11 can support long-term operation with reduced downtime.
Conclusion: Why Choose the Perkins 403EA-11 Engine?
The Perkins 403EA-11 engine combines compact design, stable diesel performance and practical maintenance advantages. It is well suited for small excavators, compact construction equipment, agricultural machinery, light industrial equipment and small generator sets.
For customers who need a compact diesel engine assembly with reliable spare parts support, the Perkins 403EA-11 is a practical solution. With proper maintenance and quality replacement parts, it can deliver consistent operation, longer service life and lower downtime risk.
